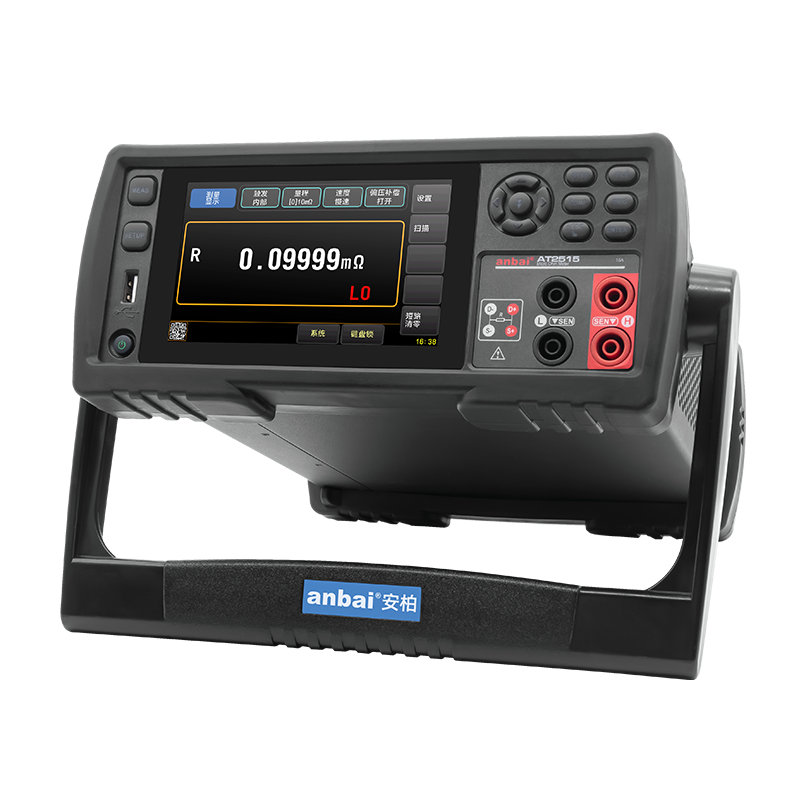

AT2515 Micro ohm Meter
ACTIVE
Send Email to us
RS232RS485USB-HIDUSB-232LAN
SCPI
DATA LOGGERUSB-DISK
OVERVIEW
    As a core equipment in the field of electrical testing, DC resistance tester is widely used in DC resistance measurement scenarios of power transformers, high-voltage switches, motor windings, transformers and other equipment. And its market demand is significantly expanding with the acceleration of electrification in multiple fields.

    In other industries, the application scenarios of DC resistance testers are broader, such as the resistance testing of ultra long cables in the wire and cable industry; Measurement of contact resistance of connectors in the battery industry; Measurement of printed circuit board circuits and hole resistors in the electronic manufacturing industry.

    The AT2515 DC resistance tester, developed by Anbai Precision Instruments and iteratively upgraded from AT515, provides a complete solution for the testing needs of the above industries and others. The ultra wide measurement range can test ultra-low resistance such as wire resistance and welding resistance, as well as high resistance scenarios up to 1.2G Ω. Built in multi level comparator, manufacturers can use the comparison sorting function to quickly arrange the production line, efficiently complete sorting, and greatly shorten the detection time of the production line for ultra high speed testing.

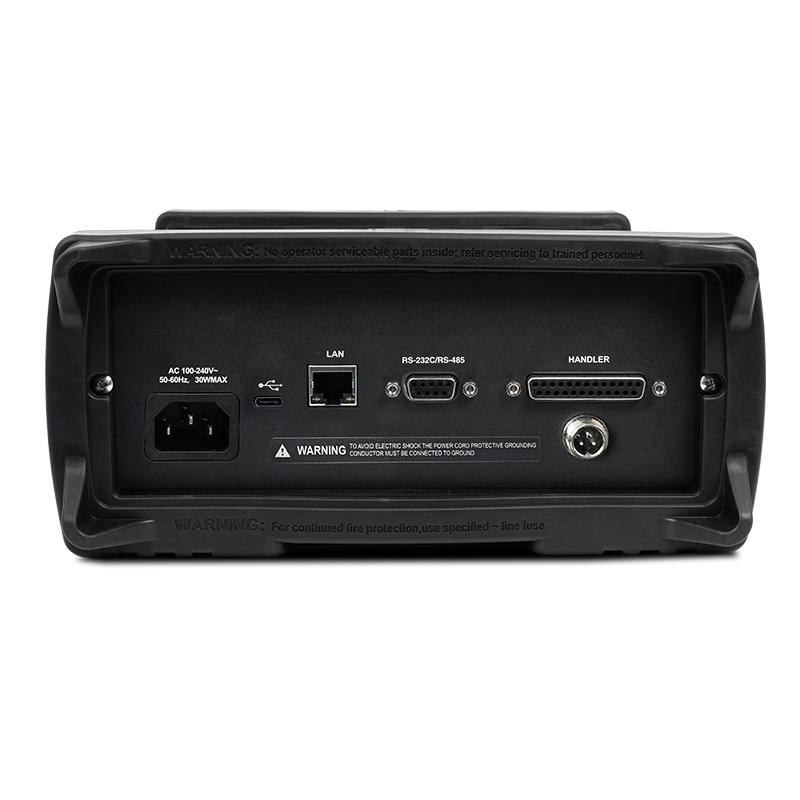

    AT2515 provides multiple interface functions and has professional sorting capabilities, which can be applied to automatic sorting systems to complete fully automatic assembly line testing; And it can be equipped with RS232/RS485/LAN/USB communication interface/USB interface, which can facilitate data communication and remote control with PC.
FEATURES
  • Wide measurement range: 0.01μΩ~1.2G Ω
  • Ultra high speed test: High speed: 100 times/second Ultra high speed precision test
  • Maximum reading 1200000 (six and a half digit reading)
  • When bias compensation is turned on, the accuracy in 10m Ω range is 0.02%
  • Support SCPI/Modbus communication protocol
  • 10 qualified grades/HI/IN/LO grades for professional comparison and sorting
  • Deviation compensation function, eliminating the influence of thermoelectric potential
  • Temperature compensation function, compensating for test value deviation
  • Multiple triggering methods, suitable for remote control
  • It can automatically switch between 12 ranges and reset the full range to zero
SPECIFICATIONS
APPLICATIONS
    Resistance testing of ultra long cables in the wire and cable industry; In the battery industry
    Measurement of contact resistance of connectors; In the electronic manufacturing industry, printed circuit board wiring
    Measurement of road and pore resistance.

    Test objects: winding resistance of motors and transformers, DC resistance of fuses and shunt resistors, welding resistance of battery busbars, loop resistance of charging interfaces, pattern resistance of printed circuit boards, and resistance of copper rod materials.
DOCUMENTATION
DOCUMENTS
DATASHEET CHINESE
USER'S GUIDE CHINESE
ACCESSORIES
STANDARDS

ATL108

ATL108

RS232通讯电缆

ATL18B20

ATL18B20

温度补偿

ATL527D

ATL527D

ATL527D

OPTIONS
NONE
SOFTWARE
