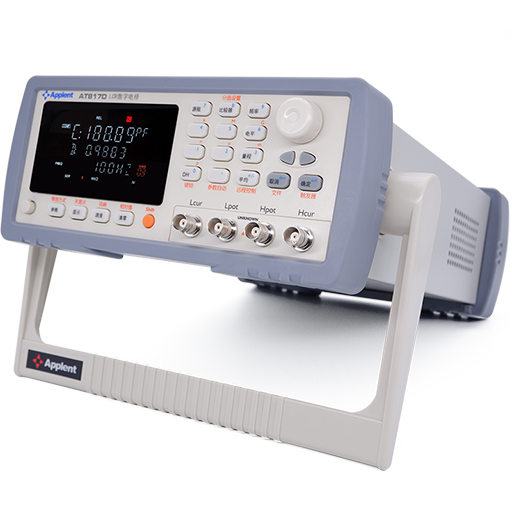

AT817D LCR Meter | Anbai Instruments

Compare

AT2811

Test Functions: L,C,R,Z,D,Q
Accuracy: 0.25%
Measurement Frequency: 100Hz,120Hz,1kHz,10kHz
Measurement Range: Auto/Hold, 6 ranges
Measurement Speed: SLOW: 3 times/s, FAST: 10 times/s

Compare

AT2816A

Test Functions: Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,R-X,Z-θrad,Z-θdeg DCR
Accuracy: 0.05%
Measurement Frequency: 50Hz～200kHz (Resolution 0.001Hz）
Measurement Range: AUTO/HOLD/NOMINAL 9 Ranges
Measurement Speed: 40 times/s, 10 times/s, 3 times/s

Compare

AT2816B

Test Functions: Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,R-X,Z-θrad,Z-θdeg DCR
Accuracy: 0.05%
Measurement Frequency: 10Hz～200kHz (37 Frequency points）
Measurement Range: AUTO/HOLD/NOMINAL 9 Ranges
Measurement Speed: 40 times/s, 10 times/s, 3 times/s

Compare

AT2817

Test Functions: Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,R-X,Z-θrad,Z-θdeg
Accuracy: 0.05%
Measurement Frequency: 50Hz～200kHz (16 Points)
Measurement Range: AUTO/HOLD/NOMINAL 9 Ranges
Measurement Speed: 40/10/3 times/s

Compare

AT2817A

Test Functions: Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,R-X,Z-θrad,Z-θdeg
Accuracy: 0.05%
Measurement Frequency: 50/60/100/120/200/400/500/1k/2k/4k/5k/10k/20k/40k/100kHz
Measurement Range: AUTO/HOLD/NOMINAL 9 Ranges
Measurement Speed: 40/10/3 times/s

Compare

AT2818

Test Functions: Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,R-X,Z-θrad,Z-θdeg
Accuracy: 0.05%
Measurement Frequency: 10Hz～300kHz (Resolution 0.01Hz）
Measurement Range: AUTO/HOLD/NOMINAL 9 Ranges
Measurement Speed: 3 times / 10 times / 5 times / 3 times/s

Compare

AT3810A

Test Functions: Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,R-X,Z-θrad,Z-θdeg DCR
Accuracy: SLOW/MED: 0.05%; FAST: 0.1%
Measurement Frequency: 10Hz～20kHz (Resolution 0.001Hz）
Measurement Range: AUTO/HOLD/NOMINAL 9 Ranges
Measurement Speed: 40 times/s, 10 times/s, 3 times/s

Compare

AT3816A

Test Functions: Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,R-X,Z-θrad,Z-θdeg DCR
Accuracy: 0.05% ±5 digits
Measurement Frequency: 10Hz～200kHz (Resolution 0.001Hz）
Measurement Range: AUTO/HOLD/NOMINAL 9 Ranges
Measurement Speed: 40 times/s, 10 times/s, 3 times/s

Compare

AT3817A

Test Functions: Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,R-X,Z-θrad,Z-θdeg DCR
Accuracy: ‌0.05% ±5 digits
Measurement Frequency: 10Hz～100kHz (Resolution 0.001Hz）
Measurement Range: AUTO/HOLD/NOMINAL 9 Ranges
Measurement Speed: 40 times/s, 10 times/s, 3 times/s

Compare

AT3818

Test Functions: Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,R-X,Z-θrad,Z-θdeg DCR
Accuracy: SLOW/MED: ‌0.05% ±5 digits，FAST: 0.1%
Measurement Frequency: 10Hz～300kHz (Resolution 0.001Hz）
Measurement Range: AUTO/HOLD/NOMINAL 9 Ranges
Measurement Speed: 40 times/s, 10 times/s, 3 times/s

Compare

AT610D

Test Functions: C,D
Accuracy: 0.1%
Measurement Frequency: 100Hz,120Hz,1kHz,10kHz
Measurement Range: AUTO/HOLD 6 Ranges
Measurement Speed: 3times/s, 8 times/s, 20 times/s

Compare

AT810

Test Functions: L,C.R,Z,D,Q
Accuracy: 0.1%
Measurement Frequency: 100Hz, 120Hz, 1kHz, 10kHz
Measurement Range: AUTO/HOLD, 6 Ranges
Measurement Speed: 15 times/s, 5 times/s, 3 times/s

Compare

AT810A

Test Functions: Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,R-X,Z-θrad,Z-θdeg DCR
Accuracy: 0.05%
Measurement Frequency: 10Hz～20kHz (Resolution 0.001Hz）
Measurement Range: AUTO/HOLD/NOMINAL 9 Ranges
Measurement Speed: 30 times/s, 10 times/s, 3 times/s

Compare

AT810D

Test Functions: Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,R-X,Z-θrad,Z-θdeg
Accuracy: 0.2%
Measurement Frequency: 100Hz, 120Hz, 1kHz, 10kHz
Measurement Range: AUTO/HOLD/NOMINAL 6 Ranges
Measurement Speed: 2 times/s, 5 times/s

Compare

AT825

Test Functions: L,C,R,Z
Accuracy: 0.2%
Measurement Frequency: 100Hz, 120Hz, 1kHz，10kHz
Measurement Range: -
Measurement Speed: 4 times/s, 1.5 times/s

Compare

AT826

Test Functions: L,C,R,Z
Accuracy: 0.2%
Measurement Frequency: 100Hz, 120Hz, 1kHz, 10kHz, 100kHz
Measurement Range: -
Measurement Speed: 4 times/s, 1.5 times/s

Compare

AT2617

Test Functions: Cs-Rs, Cs-D, Cp-Rp, Cp-D, Rs-Q,Rp-Q, Z-D, Z-Q
Accuracy: 0.1%
Measurement Frequency: 100, 120, 1kHz, 10kHz, 100kHz 0.01%
Measurement Range: Auto, manual and standard , 9 range
Measurement Speed: 30t/s, 10t/s, 3t/s

Compare

AT827

Test Functions: C-D, C-Q, C-R, L-D, L-Q, L-R, L-Rdc, R-Q, R-X, R-Rdc, Rdc, Z-D, Z-Q, Z-θr, Z-θd
Accuracy: 0.2%
Measurement Frequency: 50Hz, 100Hz，120Hz，1kHz，2kHz，10kHz
Measurement Range:
Measurement Speed:

Compare

AT828

Test Functions: C-D, C-Q, C-R, L-D, L-Q, L-R, L-Rdc, R-Q, R-X, R-Rdc, Rdc, Z-D, Z-Q, Z-θr, Z-θd
Accuracy: 0.2%
Measurement Frequency: 50Hz, 100Hz，120Hz，1kHz，2kHz，10kHz,100KHZ
Measurement Range: Automatic and manual
Measurement Speed: Slow speed 2.5 times/second, fast speed 10 times/second

Test Functions	L,C,R,Z,D,Q
Accuracy	0.1%
Measurement Frequency	50Hz,60Hz,100Hz,120Hz,1kHz,10kHz, 20kHz,40kHz,50kHz, 100kHz
Measurement Range	AUTO/HOLD 6 Ranges
Measurement Speed	3times/s, 8 times/s, 20 times/s
Display Range	L: 0.001μH-9999.9H C: 0.001pF – 9999.9μF R,X,Z: 0.0001Ω - 99.999MΩ D, 0.00001 – 9.99999 Q: 0.00001 – 99999.9
Source Resistance	30Ω and 100Ω
Monitor Parameter	Z, D, Q, Δ, Δ%
Display Reader	5 digits: 99999
Equivalent Circuit	Serial and Parallel
Signal Level	10.00mV~2.00V AC 100.0μA~20.00mA AC
Trigger Mode	INT/HOLD/MAN/BUS
Comparator	5-BINS P1/P2/P3/AUX/NG
Comparator Mode	SEQ/ABS/PER
Adjustment	OPEN/SHORT Zeroing-
Beep Feature	OFF/P1/P2/P3/AUX/NG

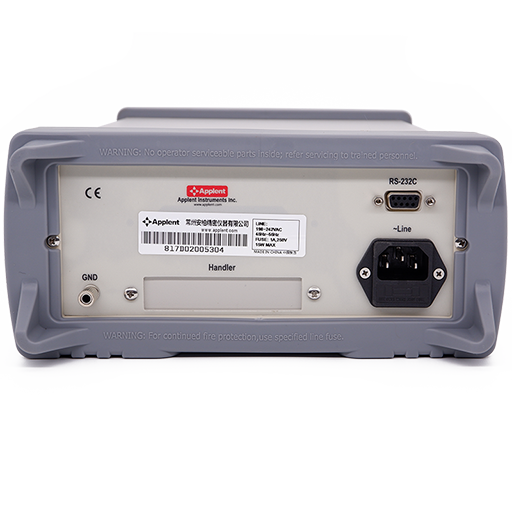

Interface	RS232/HANDLER
Protocol	SCPI
Power Supply	AC 198V-240V, 50Hz-60Hz 15W MAX
Dimension & Weight	264(W)x107(H)x350(L) 4kg, net
