AT6808 Insulation Resistance Meter
ACTIVE
Send Email to us
RS232HANDLER
RS485GPIBOPTIONS
SCPI
USB-DISK
OVERVIEW

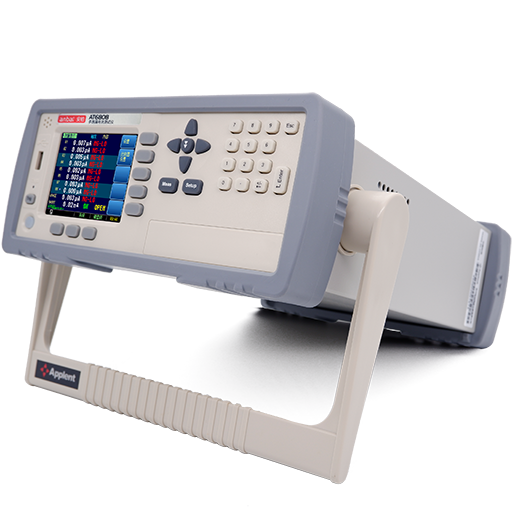

    AT6808 multi-channel resistance tester is a miniature desktop instrument controlled by high-performance ARM microprocessor with automatic real-time detection. The instrument can measure 8-channel leakage current, 1-channel unaged current and 1-channel short-circuit current at the same time, and display them on the screen at the same time.



    The 1 to 9 channel test range is from 0.0001μA to 20.000mA, and the 10 channel (shorted channel) test range is from 0.01mA to 100mA. All channels have 0.5% accuracy. The current value of each channel is displayed in 5 digits with 99999 readings.

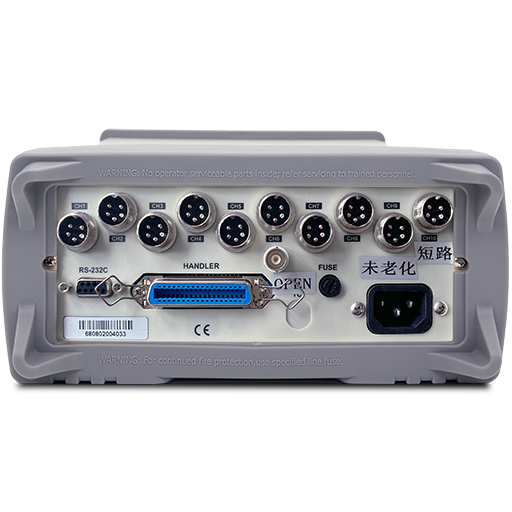

    Each channel of the instrument has an independent comparator, and the 10-channel comparator results are respectively output through the Handler interface. The instrument comes standard with the Handler interface
FEATURES
  • The charging test switches automatically.
  • Peak hold function.
  • Full-scale open circuit clear function.
  • Comparator output: The sorting result can be output through RS232C or Handler interface.
SPECIFICATIONS
ParametersLeakage current
Accuracy2%
Output VoltageNo internal voltage source
Measurement RangeCurrent: 10㎁~20mA
Max Reading8 channel in parallel/9999
RangeManual
Charging Current\
Speed20t/s
Result DisplayDirect reading
\
Charging Timer\
Comparator10 level comparator independently output
BeepOK,NG,Switch off setting and voice volume setting
InterfaceRS-232 interface, Handler interface
Power SupplyVoltage: 220VAC Frequency: 50Hz poewr： 20VA
Dimension & WeightOuter size(mm): 264(W)X107(H)X350(D) Inner size: 216(W)X88(H)X323(D) 5kg
APPLICATIONS
    Production of electrolytic capacitors.
    Capacitor inspection.
    Insulation resistance test of electronic components and equipment.
    Transistor leakage current detection.
    Insulation resistance test of dielectric materials and wires and cables, etc.
DOCUMENTATION
DOCUMENTS
DATASHEET ENGLISH

|

CHINESE
USER'S GUIDE CHINESE
ACCESSORIES
STANDARDS

ATL108

ATL108

RS232通讯电缆

OPTIONS
NONE
SOFTWARE
NONE
