OVERVIEW

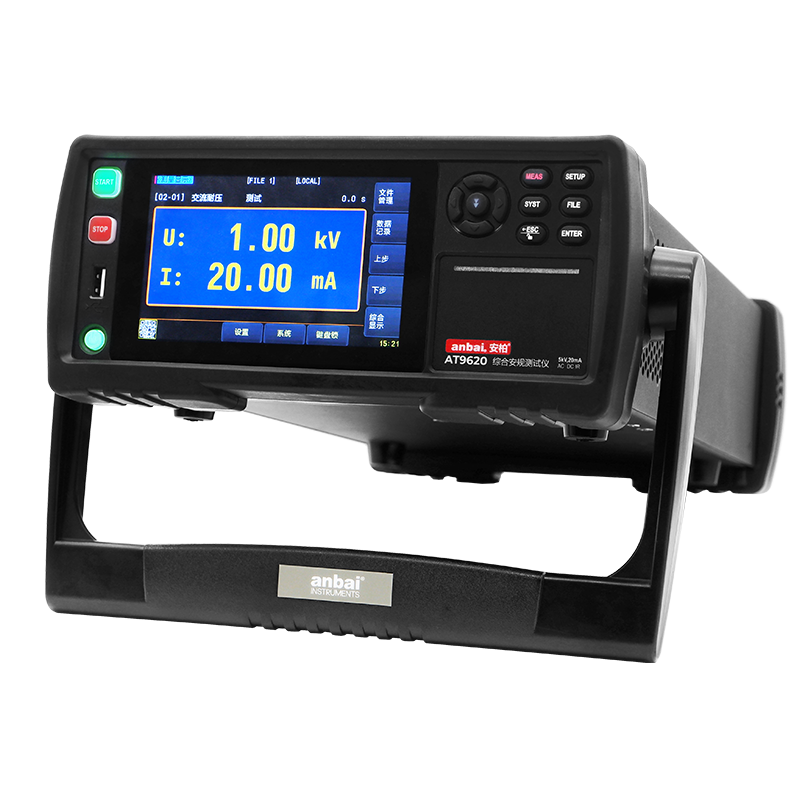

    The AT9620 AC/DC withstand voltage insulation tester is an instrument that integrates multiple testing functions such as electrical strength (AC/DC withstand voltage) and insulation resistance. It is an important testing equipment for various electrical manufacturers and quality inspection departments.



    The AT9620 uses a high-speed microprocessor as the control core and can measure various safety and regulatory parameters of the tested object in real-time. It can complete three tests within 4 seconds, especially meeting the requirements of production lines for fast testing.

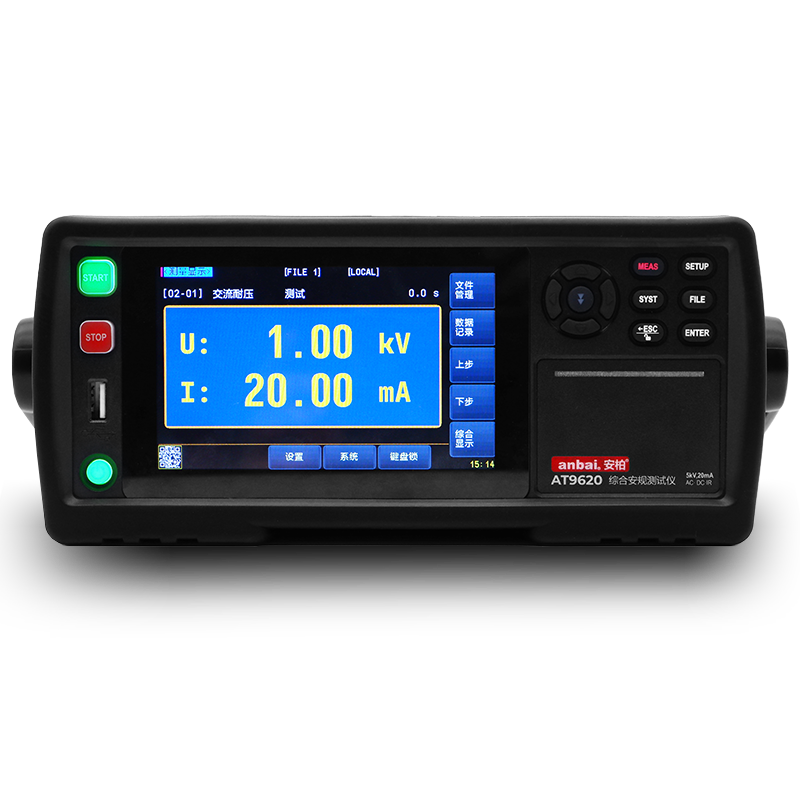

    The AT9620 adopts a 5-inch color LCD touch screen, which is easy to operate; Equipped with intelligent upper and lower limit judgment function, it can automatically identify defective products. The entire circuit adopts various anti-interference measures, with strong anti-interference ability. It has both hardware and software protection, greatly improving the reliability of the instrument. Automatic overvoltage and overcurrent protection for safer use.
FEATURES
  • AT9620 can provide 5kVAC/20mA withstand voltage, 6kVDC/10mA withstand voltage, and insulation resistance 1kv/50G Ω testing.
  • Controllable sine generator: can be set to operate at 50 or 60Hz during AC output, no longer limited by line voltage;
  • Linear power amplifier: Low distortion of voltage waveform, simple control, and high reliability.
  • Anti electric shock protection/arc detection/short circuit protection
  • It can independently conduct AC withstand voltage test, DC withstand voltage test, and insulation resistance test, and can pass the test
  • Set up a trial project and conduct sequential testing of multiple projects.
SPECIFICATIONS
Measurement FunctionsAC/DC Withstanding Voltage & IR

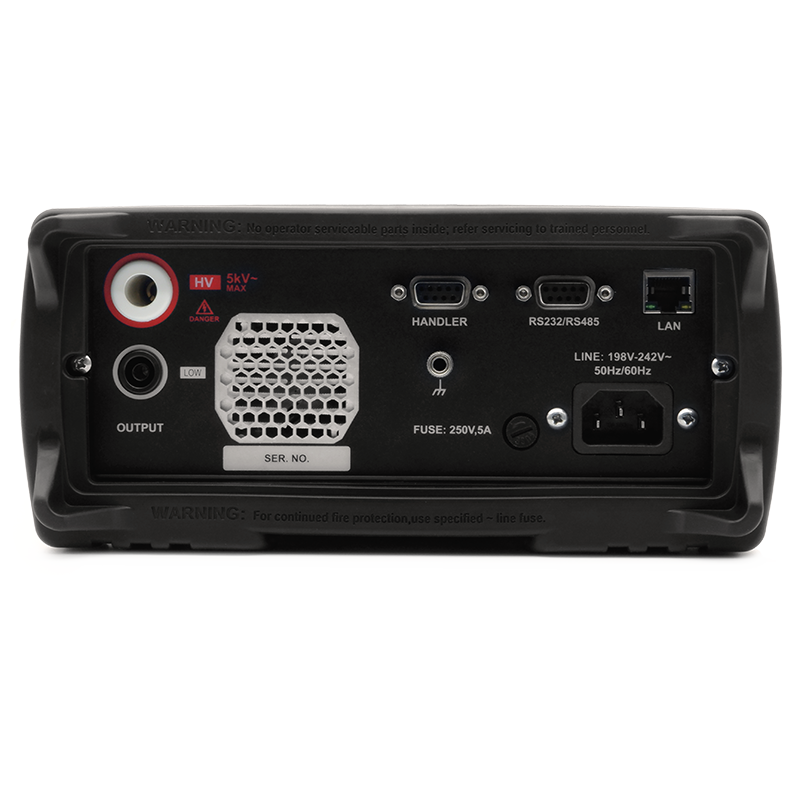

InterfaceRS232/Handler
Arc Detection9 Levels (AC/DC)
Other FunctionsLIST Edit
Discharge Function
5“ LCD + Touch panel
AC Withstand Voltage
    Rate OuputAC 5.000kV/20mA
    Output Voltage0.050kV-5.000KV AC
Resolution: 10V
    Voltage Accuracy2% of reading + 5 digits
    Output Regulation2% of reading +5V
    Output Frequency50Hz/60Hz
    Measurement Current0.001mA-20.00mA
Resolution: 0.001 / 0.01
    Current Accuracy2% of reading + 5 digits
    Rising Time0.4s-999.9s
    Testing Time0.5s-999.9s
    Falling Time0.1s-999.9s
DC Withstand Voltage
    Rate OutputDC 6kV/10mA
    Output Voltage0.050kV-6.000kV DC
Resolution: 10V
    Voltage Accuracy2% of reading + 5 digits
    Output Regulation2% of reading +5V
    Current Measurement0.1μA-10.000mA
    Current Accuracy2% of reading +5 digits
    Rising Time0.4s-999.9s
    Testing Time0.5s-999.9s
    Falling Time0.1s-999.9s
Insulation Resistance
    Rate OutputDC 1kV/50GΩ
    Output Voltage0.050kV-1.000kV DC
Resolution: 1V
    Voltage Accuracy‌2% of the set value + 5 V
    Measurement Range1MΩ-50GΩ
Power Supply220V 50/60Hz
550VA
Dimension & Weight215mm( W )x88mm( H )x400mm ( D )
8kg
AccessoriesATL900E Withstand voltage test line
ATL108 RS232 Communication
DB9-handler
APPLICATIONS
    The insulation withstand voltage tester can be widely used for safety performance inspection of household appliances, transformers, electrical equipment, and components. The instrument is equipped with a Handler interface (PLC interface), RS232C, and USB for convenient data communication and remote control with a PC, meeting the requirements of automated testing and improving production efficiency.
