AT69210 Multi channel parallel insulation resistance tester
ACTIVE
Multi channel insulation resistance tester Send Email to us
RS232RS485LAN
SCPIMODBUS
USB-DISK
OVERVIEW

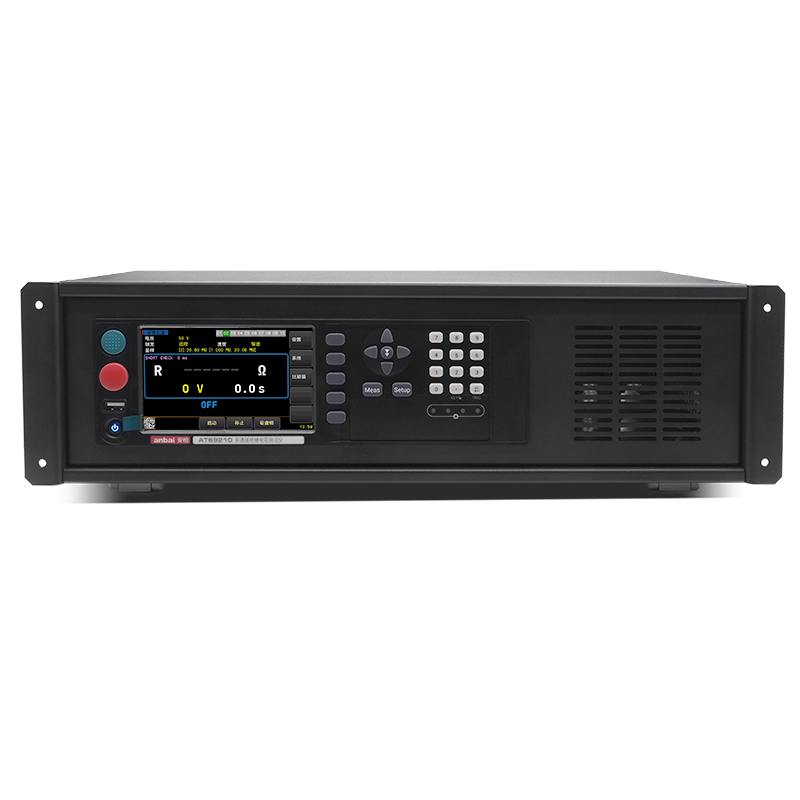

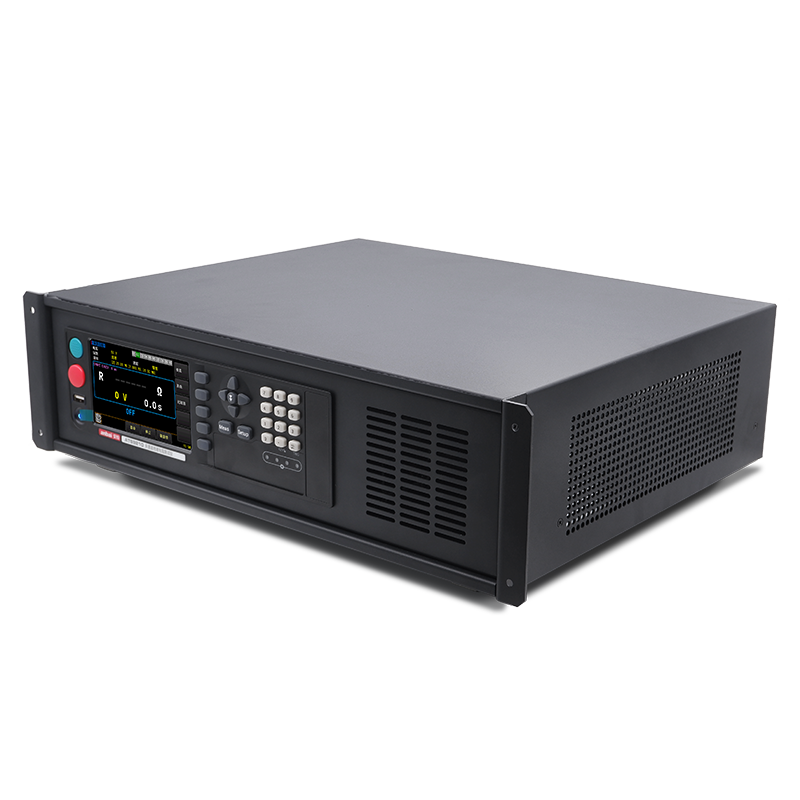

    The AT69210 multi-channel insulation resistance tester is a miniature desktop instrument controlled by a high-performance ARM microprocessor for fully automatic real-time detection. The instrument adopts a full-color LCD display screen, a full numeric keyboard, and is equipped with the Anbai instrument operating system, making the display clearer and the operation more convenient.
FEATURES

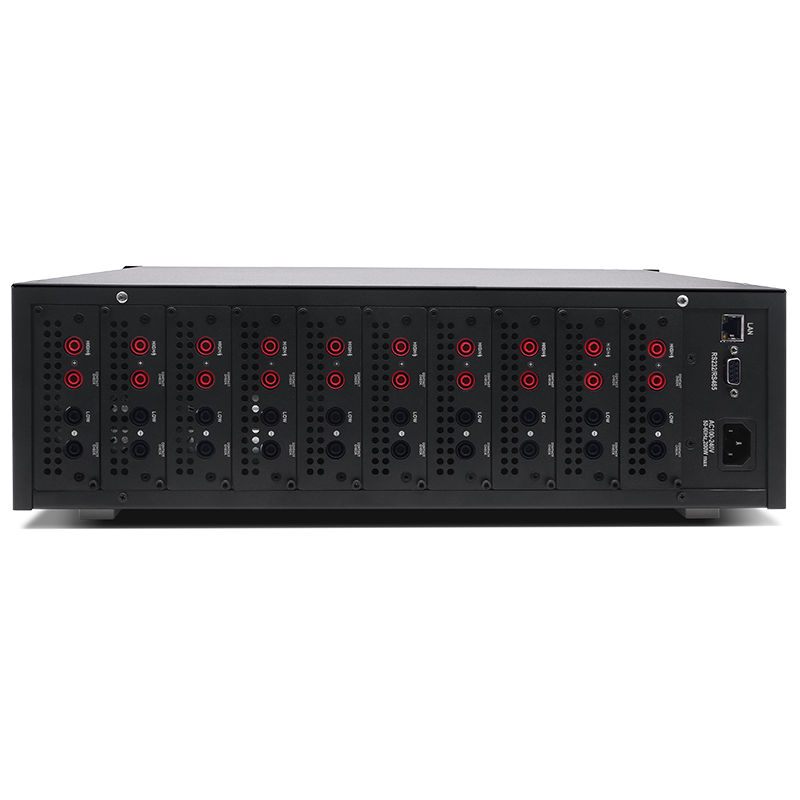

  • AT69210 has a total of 10 channels, and the number of channels can be freely selected
  • AT69210 is fully parallel, and in parallel working mode, all channels of the instrument start measurement simultaneously. Each channel can independently set the test voltage and range to meet the needs of different tested objects. Built in 1V resolution 10V~1000V voltage source, programmable output at will; The instrument has an insulation resistance accuracy of 2% and a measurement range of up to 20G Ω. The measurement speed can reach 30 times per second.
  • AT69210 has contact inspection and short circuit detection functions. It has functions of charging timing (0.1s-60s), measuring timing (0.1s-999.9. s), and discharging timing (0.1s-60s). 10 sets of settings can be stored internally, and external USB disks can also store 10 sets of settings for easy access to different specifications. Built in comparator.
  • AT69210 comes standard with LAN interface, RS-232 interface, and RS-485 interface. It uses SCPI (Standard Command for Programmable Instrument) and Modbus RTU protocol to communicate with computers, PLCs, or WINCE devices, efficiently completing remote control and data acquisition functions.
SPECIFICATIONS
channel10channel
ParametersInsulation Resistance Tester
Output VoltageDigital Control 10V ～ 1000VDC
Accuracy2%
Measurement Range0.000M ~ 20.00GΩ
Display Max9999
RangeAutomatic, manual, and nominal range
Speed30 times/s
AdjustmentFull range open -circuit reset
Result DisplayVoltage, resistance, and sorting results
Charging Timer0.1S~999S
Charging Current≈1.8mA
ComparatorHI , LO and OK
InterfaceRS232，LAN ，RS485
Power SupplyAC:100V~240V, power：20VA
Dimension & Weight371*485*129
5kg
Accessories‌Test leads (1 per channel);‌
‌ATL108 RS232 communication cable
Other FunctionsContact check, list scan, short circuit detection, U disk storage, file storage, support SCPI/MOdBus (RTU) protocol
APPLICATIONS
    AT69210 is suitable for insulation resistance testing needs in industries such as metallurgy, aerospace, automotive, and electrical; AT69210 provides multi-channel parallel testing capability, suitable for synchronous insulation performance evaluation of multiple components and parameters in fields such as electronic manufacturing; Built in high-speed testing function, which can be integrated into automated assembly lines to achieve efficient batch detection and sorting;
DOCUMENTATION
DOCUMENTS
DATASHEET ENGLISH

|

CHINESE
USER'S GUIDE CHINESE
ACCESSORIES
STANDARDS

ATL108

ATL108

RS232通讯电缆

OPTIONS
NONE
SOFTWARE
NONE
