AT6820 Insulation Resistance Meter
ACTIVE
Send Email to us
RS232RS485HANDLER
LANOPTIONS
SCPIMODBUS
USB-DISK
OVERVIEW
    AT6820 Insulation Resistance Tester is a Fully automatic real-time detection micro-desktop instrument controlled by high-performance ARM microprocessor, the instrument with LCD display,Digital keyboard & Applent operation system, which makes the display more clear and operation more convenient.

    The instrument has a built-in voltage source of 1V~1000V with a resolution of 1V, which can be programmed to output arbitrarily; the instrument has an insulation resistance accuracy of 2%, and the measurement range can reach 10G. With 9999 readings, the measurement speed can reach 30 times per second.
FEATURES
  • AT6820 Insulation Resistance Tester is a Fully automatic real-time detection micro-desktop instrument controlled by high-performance ARM microprocessor, the instrument with LCD display,Digital keyboard & Applent operation system, which makes the display more clear and operation more convenient.
  • The instrument has a built-in voltage source of 1V~1000V with a resolution of 1V, which can be programmed to output arbitrarily; the instrument has an insulation resistance accuracy of 2%, and the measurement range can reach 10G. With 9999 readings, the measurement speed can reach 30 times per second.10 sets of settings can be stored , and 10 sets of settings can also be stored on an external USB disk, which is convenient for recalling different specifications.
  • Build in comparator, The result of the file comparator can be output through the Handler interface. Unique list scan function, programmable 5 different voltages, scan measurement of insulation resistance, and output 5 comparison results through HANDLER. Standard with USB-232 interface and RS-232 interface, RS-485 interface, support Modbus RTU protocol, very convenient to communicate with PLC.
SPECIFICATIONS
ParametersInsulation Resistance Tester
Output VoltageDigital Control 10V ～ 1000VDC
AccuracyAccuracy 2%
Measurement Range0.000M ~ 1TΩ (≤500V 400G，>500V 1TΩ)
Display Max9999
RangeAuto & Manual
Speed30 times/s
AdjustmentFull range open -circuit reset
Result Displayshow, current, resistance,Peak and sorting results
Charging Timer0.1S~999.9S
Charging Current1.8mA
ComparatorOK：合格
NG LO
NG HI

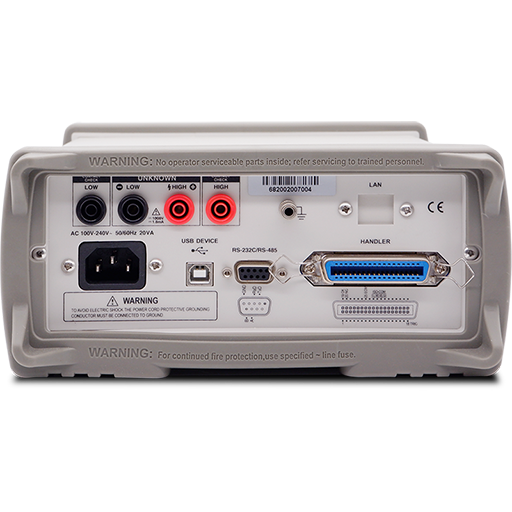

InterfaceHandler, RS232, USB,RS485 interface
Power SupplyAC:100V~240V, power：20VA
Dimension & Weight264*107*307mm
4kg
AccessoriesATL507: Three-terminal test clip ATL108: RS232 communication cable power cord
Other FunctionsContact check, list scan, short circuit detection, U disk storage, file storage, support SCPI/MOdBus (RTU) protocol, inquire high and low sound settings
APPLICATIONS
    AT6820 is suitable for insulation resistance testing needs in industries such as metallurgy, aerospace, automotive, and electrical; AT6820 is also suitable for synchronous insulation performance evaluation of multiple components and parameters in fields such as electronic manufacturing; Built in high-speed testing function, which can be integrated into automated assembly lines to achieve efficient batch detection and sorting;
