AT513 Sheet Resistivity Meter
ACTIVE
Send Email to us
RS232RS485LANHANDLER
OVERVIEW

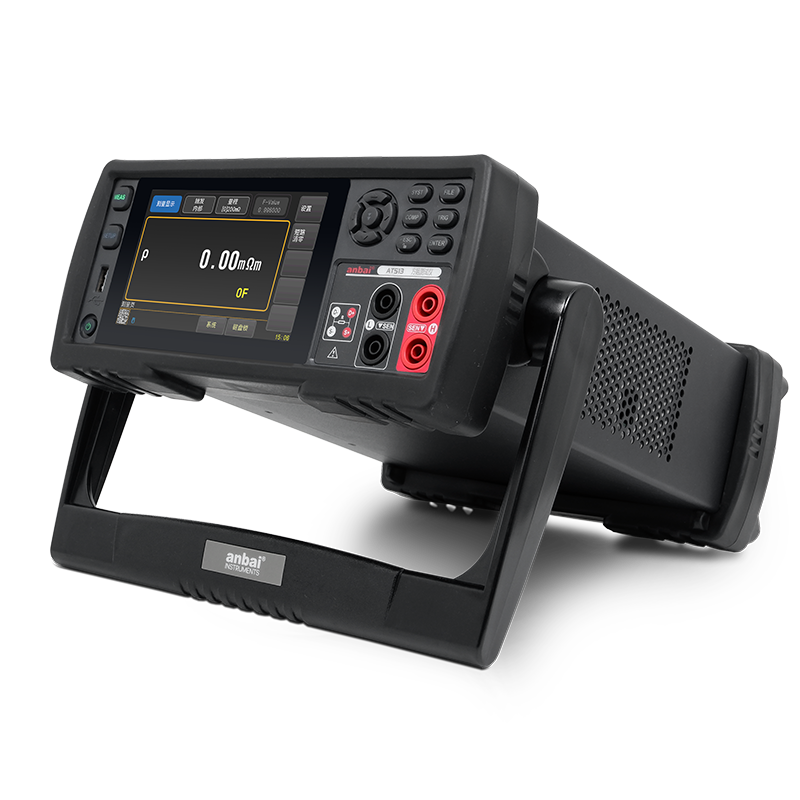

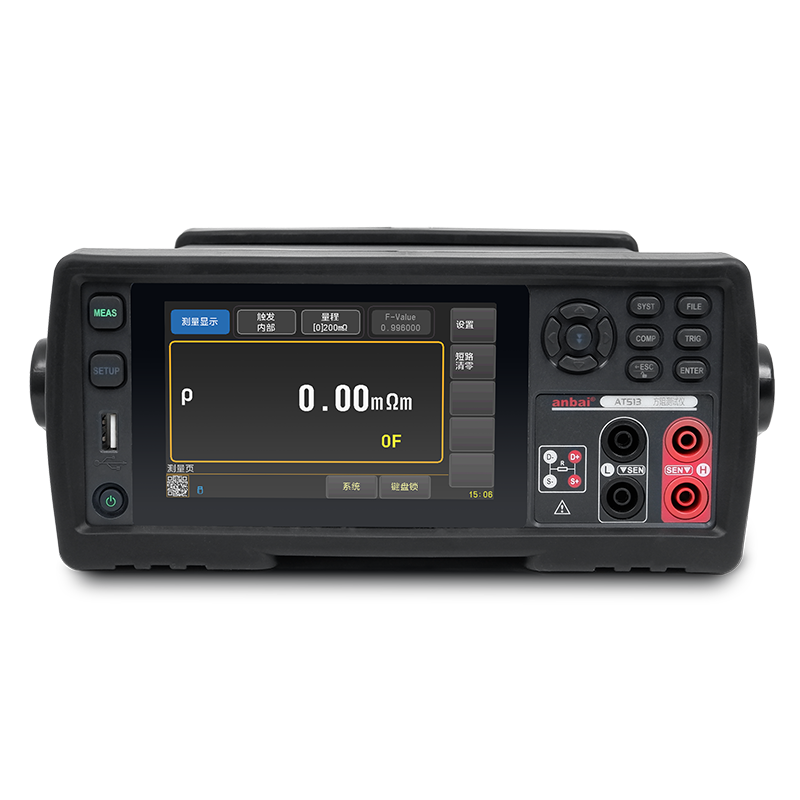

    The AT513 is a compact benchtop instrument featuring fully automatic, real-time detection controlled by a high-performance ARM microprocessor. Equipped with a full-color LCD display, a full digital keypad, and the Anbai Instruments Operating System, the instrument offers clearer display and more convenient operation.

    The AT513 features an F-value calculation function based on Length (0~10000mm), Width (0~10000mm), and Spacing (0~10000mm).

    The AT513 can store 10 settings internally. An additional 10 settings can be stored on an external USB drive, facilitating easy recall for different specifications.

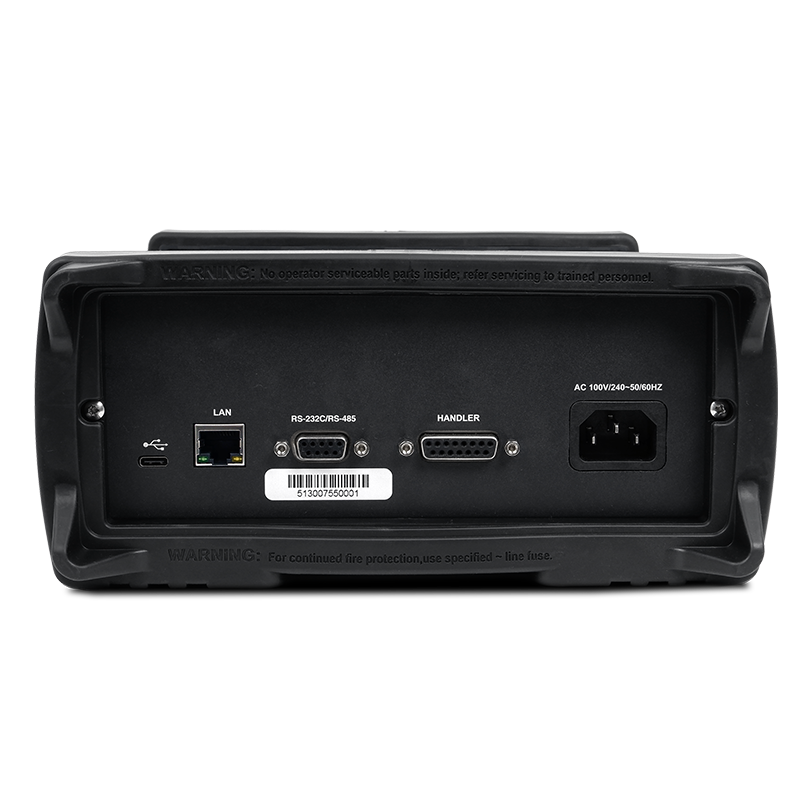

    The AT513 four-point probe resistivity tester comes standard with LAN, RS-232, and RS-485 interfaces. It utilizes the SCPI (Standard Commands for Programmable Instruments) and Modbus RTU protocols to communicate with computers, PLCs, or WINCE devices, efficiently enabling remote control and data acquisition functions.
FEATURES
  • The AT513 Four-Probe Method‌ significantly enhances measurement accuracy by separating current and voltage measurements, thereby eliminating the influence of contact resistance. This technique also reduces background signal interference, particularly when measuring low-resistivity materials where background effects are substantially suppressed.
  • Requiring only light surface contact with samples, the method causes no physical damage and is suitable for testing various sensitive materials.
  • Applicable to diverse materials including metals, semiconductors, insulators, and composites, the four-probe method provides accurate resistivity measurements for thin-film materials unaffected by sample thickness.
SPECIFICATIONS
ParameterSheet resistance testing‌
Accuracy2%
Measurement Range200mΩ~200kΩ
Range7 ranges manual
Speed/
Display Max900kΩm
TriggerInternal, external trigger
InterfaceHandler ,RS232,LAN,RS485,Type-C
Other Functions5-inch Full-Color TFT-LCD Display,‌Capacitive Touchscreen‌,‌Keyboard Lock‌
Accessories‌Four-Point Probe‌
Optional Accessories/
Dimension & Weight264x105x350mm
Weight：3.5kg
Power Supply‌Voltage‌:100VAC~240VAC Frequency:50Hz/60Hz
