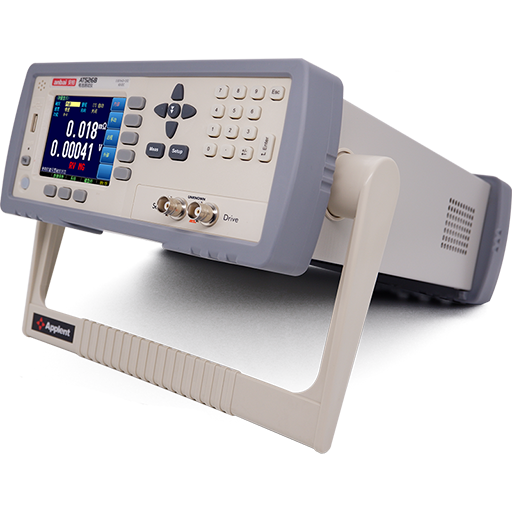

AT526B AC Resistance Meter | Anbai Instruments

Compare

AT520L

Parameters: AC Resistance , DC voltage
Accuracy: R: 0.3%, V: 0.05%
Range: R: 1μΩ- 3.2kΩ, V:100μV-60V DC
Signal Source: AC 1kHz, open-circuit voltage smaller than 20mV, measurement current smaller than 10mA
Range: Automatic and manual with 6 ranges

Compare

AT525

Parameters: ACR DCV
Accuracy: R：0.5%±5dgt（resolution 0.001mΩ）V：0.05%±5dgt（resolution 0.1mV）
Range: R：0.001mΩ~3.3000Ω V：0.0001V～60.000V
Signal Source: AC：1kHz open-circuit voltage：<30mV Test current：<15mA
Range: Automatic, Manual, Norminal, 4 ranges

Compare

AT526

Parameters: ACR, DCV
Accuracy: R：0.5% V：0.02%
Range: R：0.001mΩ~33.000kΩ V：0.00001V~120.000VDC
Signal Source: AC 1kHz，Test current：<150mA
Range: Automatic & Manual, 7 ranges

Compare

AT526C

Parameters: AC Resistance, DC voltage
Accuracy: Resistance:0.5% ; Voltage:0.01%
Range: Resistance：0.001mΩ~33.000kΩ Voltage：0.00001V~120.000VDC
Signal Source: AC 1kHz，Test current：<150mA
Range: 7 ranges, auto & manual

Compare

AT527

Parameters: ACR, DCV
Accuracy: Accuracy of Resistance 0.5%, voltage 0.01%
Range: Test range 0.0001mΩ~3.3000kΩ & 0.00001V~400.000VDC
Signal Source: 1kHz, frequency stability: 20ppm
Range: 7 ranges,3mΩ~3kΩ. auto , manual,, nominal.

Compare

AT527A

Parameters: ACR, DCV
Accuracy: Resistance accuracy: 0.5%，Voltage accuracy: 0.01%
Range: Test range：0.0001mΩ~3kΩ & 0.00001~200.000V
Signal Source: 1kHz, stable frequency: 20ppm
Range: 3mΩ~3kΩ with 7 range test.Auto, manual, Nominal.

Compare

AT527B

Parameters: ACR, DCV
Accuracy: Accuracy of resistance 0.5%，voltage accuracy 0.01%
Range: Test range 0.0001mΩ~3kΩ & 0.00001~800.000V
Signal Source: 1kHz, Frequency stability: 20ppm
Range: 3mΩ~3kΩ with 7 ranges. Automatic,Manual and Nominal

Compare

AT527H

Parameters: ACR, DCV
Accuracy: Accuracy of resistance: 0.5%，voltage: 0.01%
Range: Test range: 0.0001mΩ~3kΩ & 0.00001~1000.00V
Signal Source: 1kHz, frequency stability: 20ppm
Range: 3mΩ~3kΩ with 7 ranges. automatic, manual and nominal.

Compare

AT527L

Parameters: ACR, DCV
Accuracy: Accuracy of resistance: 0.5%，voltage: 0.01%
Range: Test range: 0.0001mΩ~3.3kΩ & 0.00001~60.00V
Signal Source: 1kHz, frequency stability: 20ppm
Range: 3mΩ~30Ω with 7 ranges. automatic, manual and nominal.

Compare

AT528

Parameters: ACR, DCV
Accuracy: R: 0.5%±5dgt（resolution:0.01mΩ） V：0.1%±5dgt（resolution:1mV)
Range: V：0.0001V~60.00V R: 0.01mΩ~2.2kΩ
Signal Source: AC:1kHz open circuit voltage：<30mV Test current：<15mA
Range: 6 ranges, automatic, manual, nominal

Compare

AT528L

Parameters: ACR, DCV
Accuracy: R: 0.5%±5dgt（resolution:0.01mΩ） V：0.1%±5dgt（resolution:1mV)
Range: R: 0.01mΩ~200.0Ω V：0.001V-60.00V
Signal Source: AC:1kHz open circuit voltage：<30mV Test current：<15mA
Range: 4 ranges, automatic, manual, nominal

Compare

AT526G

Parameters: ACR, DCV
Accuracy: R：0.5% V：0.02%
Range: R：0.001mΩ~33.000kΩ V：0.00001V~400.000VDC
Signal Source: AC 1kHz，Test current：<150mA
Range: Automatic & Manual, 7 ranges

Compare

AT527F

Parameters: ACR, DCV
Accuracy: Resistance accuracy: 0.5%，Voltage accuracy: 0.01%
Range: Test range：0.0001mΩ~3kΩ & 0.00001~200.000V
Signal Source: 1kHz, stable frequency: 20ppm
Range: 3mΩ~3kΩ with 7 range test.Auto, manual, Nominal.

Compare

AT572B

Parameters: ACR, DCV
Accuracy: Accuracy of resistance 0.5%，voltage accuracy 0.01%
Range: Test range 0.0001mΩ~3kΩ & 0.00001~800.000V
Signal Source: 1kHz, Frequency stability: 20ppm
Range: 3mΩ~3kΩ with 7 ranges. Automatic,Manual and Nominal

Compare

AT527K

Parameters: ACR, DCV
Accuracy: Accuracy of resistance: 0.5%，voltage: 0.01%
Range: Test range: 0.0001mΩ~3kΩ & 0.00001~1500.00V
Signal Source: 1kHz, frequency stability: 20ppm
Range: 3mΩ~3kΩ with 7 ranges. automatic, manual and nominal.

Compare

AT529

Parameters: ACR, DCV
Accuracy: Accuracy of Resistance 0.5%, voltage 0.01%
Range: Test range 0.0001mΩ~3300.00Ω & 0.00001V~400.000VDC
Signal Source: 1kHz, frequency stability: 20ppm
Range: 7 ranges automatic, manual, and nominal. Range nominal: The instrument will automatically select the range based on the nominal value.

Compare

AT529A

Parameters: ACR, DCV
Accuracy: Accuracy of Resistance 0.5%, voltage 0.01%
Range: Test range 0.0001mΩ~3300.00Ω & 0.00001V~200.000VDC
Signal Source: 1kHz, frequency stability: 20ppm
Range: 7 ranges automatic, manual, and nominal. Range nominal: The instrument will automatically select the range based on the nominal value.

Compare

AT529B

Parameters: ACR, DCV
Accuracy: Accuracy of Resistance 0.5%, voltage 0.01%
Range: Test range 0.0001mΩ~3300.00Ω & 0.00001V~800.000VDC
Signal Source: 1kHz, frequency stability: 20ppm
Range: 7 ranges automatic, manual, and nominal. Range nominal: The instrument will automatically select the range based on the nominal value.

Compare

AT529H

Parameters: ACR, DCV
Accuracy: Accuracy of Resistance 0.5%, voltage 0.01%
Range: Test range 0.0001mΩ~3300.00Ω & 0.00001V~1000.00VDC
Signal Source: 1kHz, frequency stability: 20ppm
Range: 7 ranges automatic, manual, and nominal. Range nominal: The instrument will automatically select the range based on the nominal value.

Compare

AT527S

Parameters: ACR, DCV
Accuracy: Accuracy of resistance: 0.5%，voltage: 0.01%
Range: Test range: 0.0001mΩ~3kΩ & 0.00001~2000.00V
Signal Source: 1kHz, frequency stability: 20ppm
Range: 3mΩ~3kΩ with 7 ranges. automatic, manual and nominal.

Compare

AT2527

Parameters: ACR, DCV
Accuracy: Accuracy of Resistance 0.5%, voltage 0.01%
Range: Test range 0.0001mΩ~3.3000kΩ & 0.00001V~400.000VDC
Signal Source: 1kHz, frequency stability: 20ppm
Range: 7 ranges,3mΩ~3kΩ. auto , manual,, nominal.

Compare

AT2527L

Parameters: ACR, DCV
Accuracy: Accuracy of Resistance 0.5%, voltage 0.01%
Range: Test range 0.0001mΩ~3.3000kΩ & 0.00001V~60.0000VDC
Signal Source: 1kHz, frequency stability: 20ppm
Range: 7 ranges,3mΩ~3kΩ. auto , manual,, nominal.

Compare

AT526J

Parameters: ACR, DCV
Accuracy: R：0.5% V：0.02%
Range: R：0.001mΩ~33.000kΩ V：0.00001V~600.000VDC
Signal Source: AC 1kHz，Test current：<150mA
Range: Automatic & Manual, 7 ranges

Compare

AT526K

Parameters: ACR, DCV
Accuracy: R：0.5% V：0.02%
Range: R：0.001mΩ~33.000kΩ V：0.00001V~800.000VDC
Signal Source: AC 1kHz，Test current：<150mA
Range: Automatic & Manual, 7 ranges

Compare

AT2527A

Parameters: ACR, DCV
Accuracy: Accuracy of Resistance 0.5%, voltage 0.01%
Range: Test range 0.0001mΩ~3.3000kΩ & 0.00001V~200.000VDC
Signal Source: 1kHz, frequency stability: 20ppm
Range: 7 ranges,3mΩ~3kΩ. auto , manual,, nominal.

Compare

AT2527B

Parameters: ACR, DCV
Accuracy: Accuracy of Resistance 0.5%, voltage 0.01%
Range: Test range 0.0001mΩ~3.3000kΩ & 0.00001V~800.000VDC
Signal Source: 1kHz, frequency stability: 20ppm
Range: 7 ranges,3mΩ~3kΩ. auto , manual,, nominal.

Compare

AT2527H

Parameters: ACR, DCV
Accuracy: Accuracy of Resistance 0.5%, voltage 0.01%
Range: Test range 0.0001mΩ~3.3000kΩ & 0.00001V~1000.00VDC
Signal Source: 1kHz, frequency stability: 20ppm
Range: 7 ranges,3mΩ~3kΩ. auto , manual,, nominal.

Compare

AT2527K

Parameters: ACR, DCV
Accuracy: Accuracy of Resistance 0.5%, voltage 0.01%
Range: Test range 0.0001mΩ~3.3000kΩ & 0.00001V~1500,00VDC
Signal Source: 1kHz, frequency stability: 20ppm
Range: 7 ranges,3mΩ~3kΩ. auto , manual,, nominal.

Compare

AT2527S

Parameters: ACR, DCV
Accuracy: Accuracy of Resistance 0.5%, voltage 0.01%
Range: Test range 0.0001mΩ~3.3000kΩ & 0.00001V~2000,00VDC
Signal Source: 1kHz, frequency stability: 20ppm
Range: 7 ranges,3mΩ~3kΩ. auto , manual,, nominal.

Compare

AT526M

Parameters: ACR, DCV
Accuracy: R：0.5% V：0.02%
Range: R：0.001mΩ~33.000kΩ V：0.00001V~400.000VDC
Signal Source: AC 1kHz，Test current：<150mA
Range: Automatic & Manual, 7 ranges

Parameters	ACR, DCV
Accuracy	R：0.5% V：0.05%
Range	R：0.001mΩ ～ 33.00Ω V：0.0001V~60.000VDC
Signal Source	AC 1kHz，open circuit voltage <20mV，Test current：<150mA
Range	Automatic & Manual , 5 ranges
Speed	Fast: 27.4 times/s；Medium: 10.2 times/s；Slow: 3.8 times/s
Result Display	show, ΔABS,Δ%,θ,sorting results
Display Max	R：33.00 V：60,00
Adjustment	short- circuit reset for all range
Comparator	RHI/RNG/RLO output VHI/VNG/VLO output Absolute tolerance ±TOL sorting Percent tolerance TOL sorting Sequence comparison sorting
Trigger	Internal, Manual & Remote
Cantact Checking	Broken Wire Detection and Open Detection

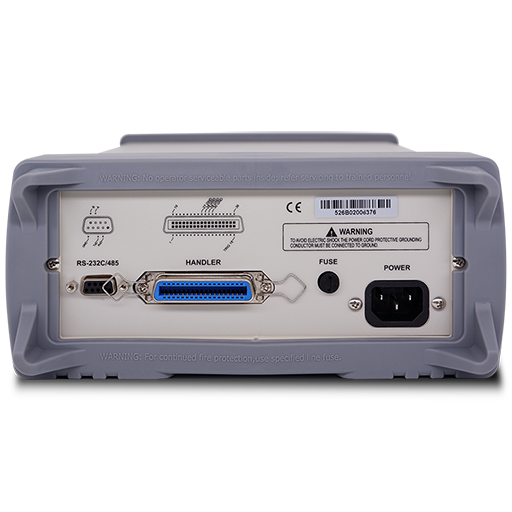

Interface	RS-232C , Handler（PLC）USB
Options	ATL502A test probe, ATL609 test fixture
Power	V：195VAC～245VAC Fre：50Hz power：20VA
Dimensions	264 x107 x350 mm
Mass	4kg
Accessories	ATL502 kelvin test wire、 ATL108 RS232 communication cable
Other functions	Detection of damage test wire, TFT true color display, keypad lock and data hold function, internal memory and U-disk record
