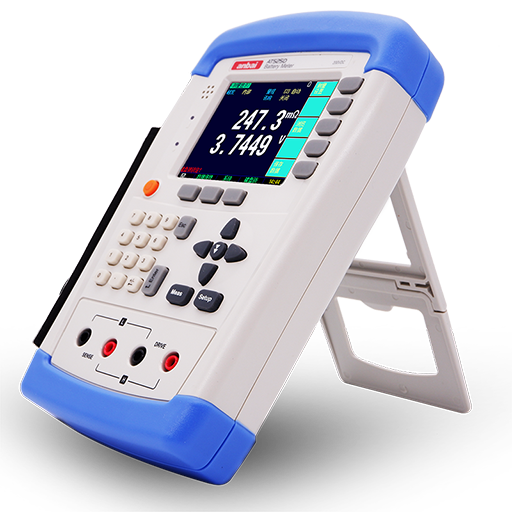

AT525 Handhold Battery Tester | Anbai Instruments

Compare

AT520L

Parameters: AC Resistance , DC voltage
Accuracy: R: 0.3%, V: 0.05%
Range: R: 1μΩ- 3.2kΩ, V:100μV-60V DC
Signal Source: AC 1kHz, open-circuit voltage smaller than 20mV, measurement current smaller than 10mA
Range: Automatic and manual with 6 ranges

Compare

AT526

Parameters: ACR, DCV
Accuracy: R：0.5% V：0.02%
Range: R：0.001mΩ~33.000kΩ V：0.00001V~120.000VDC
Signal Source: AC 1kHz，Test current：<150mA
Range: Automatic & Manual, 7 ranges

Compare

AT526B

Parameters: ACR, DCV
Accuracy: R：0.5% V：0.05%
Range: R：0.001mΩ ～ 33.00Ω V：0.0001V~60.000VDC
Signal Source: AC 1kHz，open circuit voltage <20mV，Test current：<150mA
Range: Automatic & Manual , 5 ranges

Compare

AT526C

Parameters: AC Resistance, DC voltage
Accuracy: Resistance:0.5% ; Voltage:0.01%
Range: Resistance：0.001mΩ~33.000kΩ Voltage：0.00001V~120.000VDC
Signal Source: AC 1kHz，Test current：<150mA
Range: 7 ranges, auto & manual

Compare

AT527

Parameters: ACR, DCV
Accuracy: Accuracy of Resistance 0.5%, voltage 0.01%
Range: Test range 0.0001mΩ~3.3000kΩ & 0.00001V~400.000VDC
Signal Source: 1kHz, frequency stability: 20ppm
Range: 7 ranges,3mΩ~3kΩ. auto , manual,, nominal.

Compare

AT527A

Parameters: ACR, DCV
Accuracy: Resistance accuracy: 0.5%，Voltage accuracy: 0.01%
Range: Test range：0.0001mΩ~3kΩ & 0.00001~200.000V
Signal Source: 1kHz, stable frequency: 20ppm
Range: 3mΩ~3kΩ with 7 range test.Auto, manual, Nominal.

Compare

AT527B

Parameters: ACR, DCV
Accuracy: Accuracy of resistance 0.5%，voltage accuracy 0.01%
Range: Test range 0.0001mΩ~3kΩ & 0.00001~800.000V
Signal Source: 1kHz, Frequency stability: 20ppm
Range: 3mΩ~3kΩ with 7 ranges. Automatic,Manual and Nominal

Compare

AT527H

Parameters: ACR, DCV
Accuracy: Accuracy of resistance: 0.5%，voltage: 0.01%
Range: Test range: 0.0001mΩ~3kΩ & 0.00001~1000.00V
Signal Source: 1kHz, frequency stability: 20ppm
Range: 3mΩ~3kΩ with 7 ranges. automatic, manual and nominal.

Compare

AT527L

Parameters: ACR, DCV
Accuracy: Accuracy of resistance: 0.5%，voltage: 0.01%
Range: Test range: 0.0001mΩ~3.3kΩ & 0.00001~60.00V
Signal Source: 1kHz, frequency stability: 20ppm
Range: 3mΩ~30Ω with 7 ranges. automatic, manual and nominal.

Compare

AT528

Parameters: ACR, DCV
Accuracy: R: 0.5%±5dgt（resolution:0.01mΩ） V：0.1%±5dgt（resolution:1mV)
Range: V：0.0001V~60.00V R: 0.01mΩ~2.2kΩ
Signal Source: AC:1kHz open circuit voltage：<30mV Test current：<15mA
Range: 6 ranges, automatic, manual, nominal

Compare

AT528L

Parameters: ACR, DCV
Accuracy: R: 0.5%±5dgt（resolution:0.01mΩ） V：0.1%±5dgt（resolution:1mV)
Range: R: 0.01mΩ~200.0Ω V：0.001V-60.00V
Signal Source: AC:1kHz open circuit voltage：<30mV Test current：<15mA
Range: 4 ranges, automatic, manual, nominal

Compare

AT526G

Parameters: ACR, DCV
Accuracy: R：0.5% V：0.02%
Range: R：0.001mΩ~33.000kΩ V：0.00001V~400.000VDC
Signal Source: AC 1kHz，Test current：<150mA
Range: Automatic & Manual, 7 ranges

Compare

AT527F

Parameters: ACR, DCV
Accuracy: Resistance accuracy: 0.5%，Voltage accuracy: 0.01%
Range: Test range：0.0001mΩ~3kΩ & 0.00001~200.000V
Signal Source: 1kHz, stable frequency: 20ppm
Range: 3mΩ~3kΩ with 7 range test.Auto, manual, Nominal.

Compare

AT572B

Parameters: ACR, DCV
Accuracy: Accuracy of resistance 0.5%，voltage accuracy 0.01%
Range: Test range 0.0001mΩ~3kΩ & 0.00001~800.000V
Signal Source: 1kHz, Frequency stability: 20ppm
Range: 3mΩ~3kΩ with 7 ranges. Automatic,Manual and Nominal

Compare

AT527K

Parameters: ACR, DCV
Accuracy: Accuracy of resistance: 0.5%，voltage: 0.01%
Range: Test range: 0.0001mΩ~3kΩ & 0.00001~1500.00V
Signal Source: 1kHz, frequency stability: 20ppm
Range: 3mΩ~3kΩ with 7 ranges. automatic, manual and nominal.

Compare

AT529

Parameters: ACR, DCV
Accuracy: Accuracy of Resistance 0.5%, voltage 0.01%
Range: Test range 0.0001mΩ~3300.00Ω & 0.00001V~400.000VDC
Signal Source: 1kHz, frequency stability: 20ppm
Range: 7 ranges automatic, manual, and nominal. Range nominal: The instrument will automatically select the range based on the nominal value.

Compare

AT529A

Parameters: ACR, DCV
Accuracy: Accuracy of Resistance 0.5%, voltage 0.01%
Range: Test range 0.0001mΩ~3300.00Ω & 0.00001V~200.000VDC
Signal Source: 1kHz, frequency stability: 20ppm
Range: 7 ranges automatic, manual, and nominal. Range nominal: The instrument will automatically select the range based on the nominal value.

Compare

AT529B

Parameters: ACR, DCV
Accuracy: Accuracy of Resistance 0.5%, voltage 0.01%
Range: Test range 0.0001mΩ~3300.00Ω & 0.00001V~800.000VDC
Signal Source: 1kHz, frequency stability: 20ppm
Range: 7 ranges automatic, manual, and nominal. Range nominal: The instrument will automatically select the range based on the nominal value.

Compare

AT529H

Parameters: ACR, DCV
Accuracy: Accuracy of Resistance 0.5%, voltage 0.01%
Range: Test range 0.0001mΩ~3300.00Ω & 0.00001V~1000.00VDC
Signal Source: 1kHz, frequency stability: 20ppm
Range: 7 ranges automatic, manual, and nominal. Range nominal: The instrument will automatically select the range based on the nominal value.

Compare

AT527S

Parameters: ACR, DCV
Accuracy: Accuracy of resistance: 0.5%，voltage: 0.01%
Range: Test range: 0.0001mΩ~3kΩ & 0.00001~2000.00V
Signal Source: 1kHz, frequency stability: 20ppm
Range: 3mΩ~3kΩ with 7 ranges. automatic, manual and nominal.

Compare

AT2527

Parameters: ACR, DCV
Accuracy: Accuracy of Resistance 0.5%, voltage 0.01%
Range: Test range 0.0001mΩ~3.3000kΩ & 0.00001V~400.000VDC
Signal Source: 1kHz, frequency stability: 20ppm
Range: 7 ranges,3mΩ~3kΩ. auto , manual,, nominal.

Compare

AT2527L

Parameters: ACR, DCV
Accuracy: Accuracy of Resistance 0.5%, voltage 0.01%
Range: Test range 0.0001mΩ~3.3000kΩ & 0.00001V~60.0000VDC
Signal Source: 1kHz, frequency stability: 20ppm
Range: 7 ranges,3mΩ~3kΩ. auto , manual,, nominal.

Compare

AT526J

Parameters: ACR, DCV
Accuracy: R：0.5% V：0.02%
Range: R：0.001mΩ~33.000kΩ V：0.00001V~600.000VDC
Signal Source: AC 1kHz，Test current：<150mA
Range: Automatic & Manual, 7 ranges

Compare

AT526K

Parameters: ACR, DCV
Accuracy: R：0.5% V：0.02%
Range: R：0.001mΩ~33.000kΩ V：0.00001V~800.000VDC
Signal Source: AC 1kHz，Test current：<150mA
Range: Automatic & Manual, 7 ranges

Compare

AT2527A

Parameters: ACR, DCV
Accuracy: Accuracy of Resistance 0.5%, voltage 0.01%
Range: Test range 0.0001mΩ~3.3000kΩ & 0.00001V~200.000VDC
Signal Source: 1kHz, frequency stability: 20ppm
Range: 7 ranges,3mΩ~3kΩ. auto , manual,, nominal.

Compare

AT2527B

Parameters: ACR, DCV
Accuracy: Accuracy of Resistance 0.5%, voltage 0.01%
Range: Test range 0.0001mΩ~3.3000kΩ & 0.00001V~800.000VDC
Signal Source: 1kHz, frequency stability: 20ppm
Range: 7 ranges,3mΩ~3kΩ. auto , manual,, nominal.

Compare

AT2527H

Parameters: ACR, DCV
Accuracy: Accuracy of Resistance 0.5%, voltage 0.01%
Range: Test range 0.0001mΩ~3.3000kΩ & 0.00001V~1000.00VDC
Signal Source: 1kHz, frequency stability: 20ppm
Range: 7 ranges,3mΩ~3kΩ. auto , manual,, nominal.

Compare

AT2527K

Parameters: ACR, DCV
Accuracy: Accuracy of Resistance 0.5%, voltage 0.01%
Range: Test range 0.0001mΩ~3.3000kΩ & 0.00001V~1500,00VDC
Signal Source: 1kHz, frequency stability: 20ppm
Range: 7 ranges,3mΩ~3kΩ. auto , manual,, nominal.

Compare

AT2527S

Parameters: ACR, DCV
Accuracy: Accuracy of Resistance 0.5%, voltage 0.01%
Range: Test range 0.0001mΩ~3.3000kΩ & 0.00001V~2000,00VDC
Signal Source: 1kHz, frequency stability: 20ppm
Range: 7 ranges,3mΩ~3kΩ. auto , manual,, nominal.

Compare

AT526M

Parameters: ACR, DCV
Accuracy: R：0.5% V：0.02%
Range: R：0.001mΩ~33.000kΩ V：0.00001V~400.000VDC
Signal Source: AC 1kHz，Test current：<150mA
Range: Automatic & Manual, 7 ranges

Parameters	ACR DCV
Accuracy	R：0.5%±5dgt（resolution 0.001mΩ）V：0.05%±5dgt（resolution 0.1mV）
Range	R：0.001mΩ~3.3000Ω V：0.0001V～60.000V
Signal Source	AC：1kHz open-circuit voltage：<30mV Test current：<15mA
Range	Automatic, Manual, Norminal, 4 ranges
Speed	1 times/s
Result Display	ABS /PER/ SEQ
Display Max	R：3300 V：6000
Adjustment	Short circuit correction for each range
Comparator	Voltage & Resistance compare separately, voltage & resistance combination compare GD/NG sortingg results display , beep
Trigger	Internal, Manual, Remote
Cantact Checking	Broken Wire Detection and Open Detection
Interface	Build-in Mini-USB (virtual serial port), charging, U disc
Options	18650 Fixture
Power	Input：100-240V~50/60Hz 0.35A output：9V 1A DC ##8.4V 2200mAh li battery
Dimensions	130.23 x210.76 x37.88 mm
Mass	650g
Accessories	ATL501B 4 terminal kelvin test clip; ATL909 DC adaptor; ATL202 bag; ATL804 Li battery ATL105Mini-USB communication cable﹡ATS528 data collection sofware
Other functions	3.5 inch true color LCD, keypad lock, data hold function; compatible SCPI order set; Chines, English adjustable, auto power -off; 500 sets measured data saved with one key
