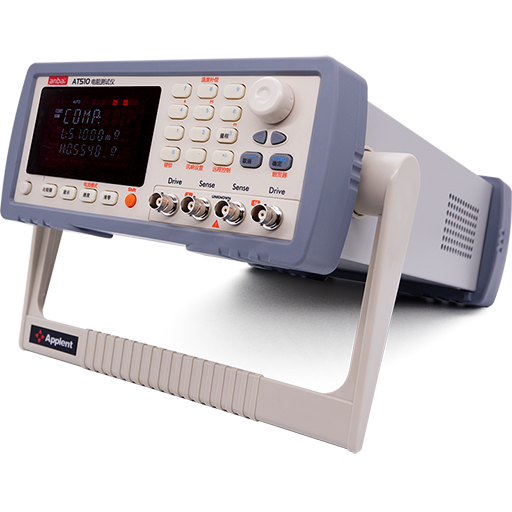

AT510 micro ohm Meter
DISCONTINUED
RECOMMENDED: AT516
1μΩ～3MΩ
0.05% Send Email to us
RS232
SCPI
OVERVIEW
    AT510 Micro ohm Meter adopts micro-processor control with high accuracy and wide range. Test range 1μΩ～3MΩ, max reading 30,000 dgts, fast speed of 60 times/second, accuracy of 0.05% still can be reached with speed of 15 times/second, Configurated temperature compensation function. AT510 can be used to test meter resistance accurately. Optional earphone beeper interface. Three kinds current mode can meet all kinds of requirements.
FEATURES
  • High brightness, ultra clear four-color VFD Display.
  • Double display: ΔABS/Δ%/Sorting Result
  • Zero-setting Function: short circuit zero-setting function
  • Comparator Function: Stores up to 30 sets of comparators HI/IN/LOW/GD/NG
  • Self-Calibration: Temperature compensation.
  • Self-Calibration: Thermoelectromotive force compensation.
  • Heavy current test mode(Open voltage <20mV).
  • Four-terminal resistance measurement.

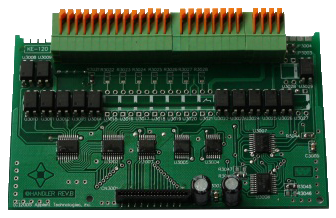

  • Build-in RS-232C, Handler(EXT-I/O) interface
  • Beeper and brightness can be adjusted.
  • Internal,Manual,External or Remote Trig.
  • GPIB Interface(Optional).
  • USB Interface(Optional).
  • SCPI compatible command sets.
  • Keypad lock function.
  • Data Hold function.
SPECIFICATIONS
ParameterDC RESISTANCE
Accuracy0.05%
Measurement Range1μΩ～3MΩ
Measurement currentI-Max: <1A Current mode: high current, small current, pulse current
Range9 ranges, Auto , Manual
Speed60 times/s, 15 times/s, 2 times/s
Displayshow,、ΔABS、Δ% sorting result
Display Max30,000
Adjustmentshort-circuit reset full range
Comparator30 groups comparator, NG-LO,GD-IN,NG-HI display and output, beep adjustable.
TriggerInternal, Manual, External, Remote

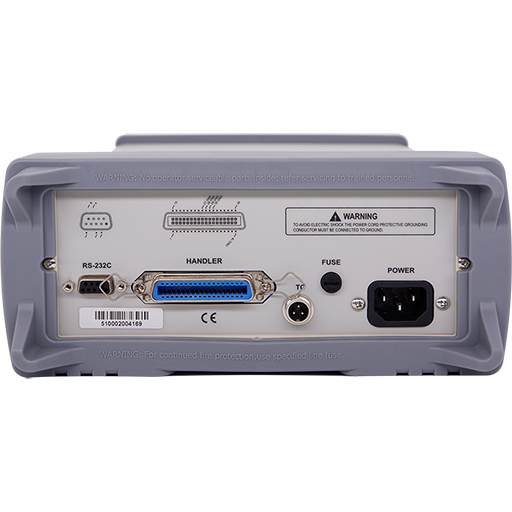

InterfaceRS232C, Handler, (PLC)
Temperature compensationAccuracy: 0.2 °C Range: 0～80 °C
Method4 terminal shielding (2 check terminal & 2 driving terminal), external shielding ground section
Power SupplyV:：198VAC～240VAC Fre：50Hz Power：15VA
Dimension & Weight216x88x323mm Weight：4kg
AccessoriesATL501 / ATL801
Optional AccessoriesATL620
Other Functions4 color VFD display , keyboard lock, data hold function
APPLICATIONS
    Suitable for all kinds of high, middle and low resistor
    Contact resistance of the switches
    Contact resistance of all kinds of connector
    Resistance of motor and transformer
    windings,
    Enamel-insulated wire resistance.
    relay/switch connector contacts,
    PCB patterns,
    chip inductor DC resistance.
    Wire Resistance.
    Car,ship and plane fasten or secure resistance.
