AT5108 Multi-channel Resistance Meter
ACTIVE
Send Email to us
RS232HANDLERTEMP-COMP
USB-232LANOPTIONS
SCPIMODBUS
DATA LOGGERUSB-DISK
OVERVIEW

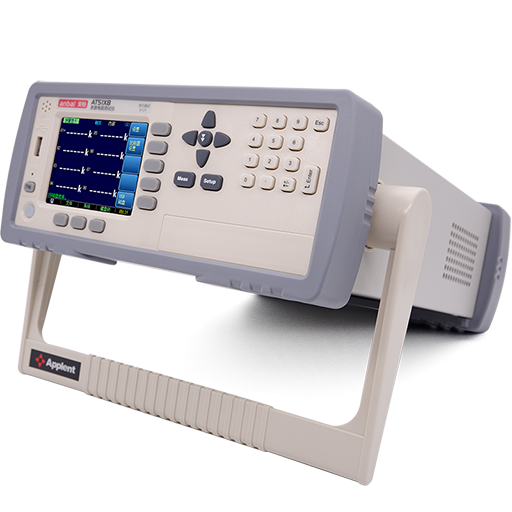

    AT5108 is a newly designed high-precision, wide-range, multi-channel resistance tester that can scan 8 resistance. Controlled by high performance ARM microprocessors. True color 3.5 inch LCD can display 8 resistance values at the same time, each channel can be set separately. The AT5108 can test 1μΩ~300KΩ resistance, te maximum display is 30,000. At the same time, it also has a standard temperature compensation function to adapt to different test requirements. Applied to automation equipment, HANDLER interface (PLC interface) is added to output GD/NG signal and RS-232C interface, support SCPI protocol and Modbus protocol (Modbus has become the national standard GB/T19582-2008) applied to automatic sorting system to complete automated assembly line testing to improve production automation testing capabilities.
FEATURES
  • 8 channels resistance scan measurement
  • True-color TFT-LCD display
  • Can set resistance high/low limit independently
  • Temperature compensation function
  • Keyboard lock function
SPECIFICATIONS
Channel8 channel (scanning)
ParameterDCR
Accuracy0.05%
Measurement Range1μΩ~300KΩ
Signal SourceCurrent:<1A
RangeAutomatic & Manual and Nominal
SpeedSlow: 3.4 s / 10 channels;
‌Medium: 830 ms / 10 channels‌;
‌Fast: 350 ms / 10 channels‌;
‌High-Speed: 230 ms / 10 channels‌
Result Display8 channel direct reading
Max ReadingSlow & Medium: 30,000;
‌Fast & High-Speed: 3,000
Adjustmentshort-circuit reset full range
Comparator8 channel can set independently
TriggerInternal, External, Manual, Remote trigger

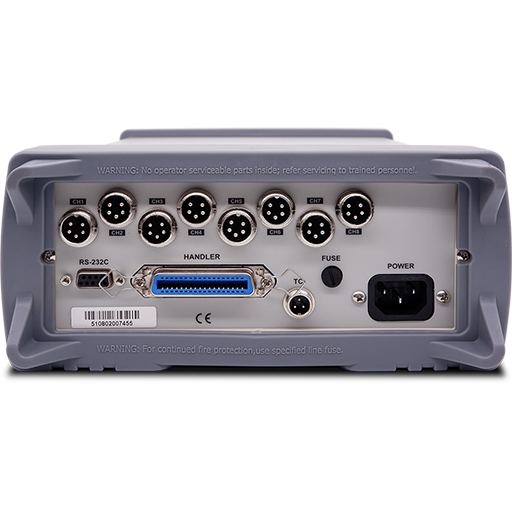

InterfaceRS-232C (SCPI order set) HANDLER (PLC) ‌Temperature Compensation Interface‌
TemperatureAccuracy:0.2℃ Test range:0~80℃
Method4 terminal shielding (2 check terminal & 2 driving terminal)
Cantact CheckingD+/S+, D-/S-
Other FunctionsColor LCD display, can set resistance upper & low limit,temperature compensation; keyboard lock function
Power SupplyV: 198VAC~240VAC Fre:50Hz Power:20VA
Dimension & Weight264*107*350mm / 4kg
AccessoriesATL503 Kelvin Test Clips ×1 set;
ATL503 Test Leads (without clips) ×8 sets;
ATL108 RS-232C Communication Cable;
ATL18B20 Temperature Probe
APPLICATIONS
    Multiple winding transformer DC resistance measurement
    Coil DC resistance measurement
    Motors Multiple winding resistance measurement
