AT5330 AC Low ohm Meter (Battery Internal Resistance Meter)
ACTIVE
Send Email to us
RS232USB-232HANDLER
RS485OPTIONS
SCPI
USB-DISK
OVERVIEW
    AT5330 multi-channel battery tester is a miniature desktop instrument controlled by high-performance 32-bit ARM microprocessor and fully automatic real-time detection. Scanning test for 30-channel battery internal resistance and voltage. The instrument can test 0.001mΩ~3k resistance, 0.0001V~60.000V DC voltage, resistance 30000 display digits, voltage 60000 display digits.

    The instrument can perform mixed test on the resistance of 30 different batteries, each channel has independent comparator settings, and the 30-channel comparator results can be output through the Handler interface in a time-sharing manner. The instrument comes standard with RS-232 interface, RS-485 interface, USB communication interface and Handler interface
FEATURES
  • Adopt vector method and measure multi parameter silmutaneously
  • Comparator(sorting) function
  • Detection of damage test wire
  • Compatible with SCPI
  • Brand-new improved sampling circuit
SPECIFICATIONS
Parameter30 channel AC resistance, 30 channel DC voltage
AccuracyResistance: 0.5% Voltage: 0.05%
Test rangeResistance: 0.01mΩ~3.3000kΩ Voltage: 0.0001V~60.000C
Signal sourceAC 1kHz, Test current: <150mA
Range3 ranges, Auto, Manual
Test speedSlow: 4s/30 channel
Medium: 3s/30 channel
Result displayDirect reading: ,ΔABS,Δ%,θ, Sorting results
Max displayResistance: 3,000 Voltage: 60000
CalibrationWithin full range short-circuit zero-clearance
ComparatorRHI/RNG/RLOOutput VHI/VNG/VLO Output absolute tolerance±TOL Sorting percentage toleranceTOL Sorting sequence comparing sorting
TriggerInternal trigging, manual trigging, external trigging, and remote trigging

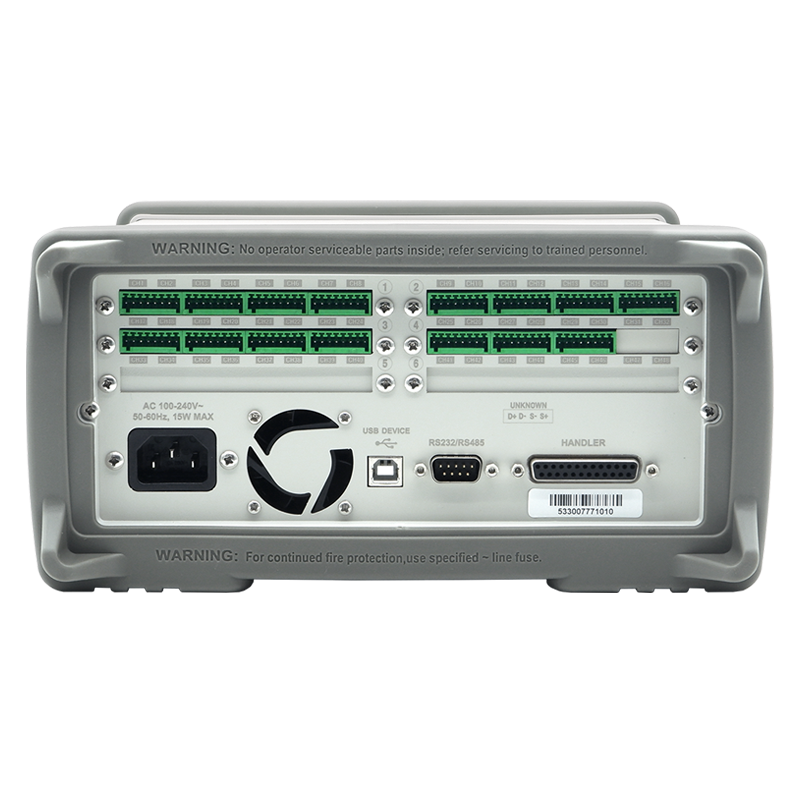

InterfaceRS-232C interface Handler interface(PLC interface)
Power requirementsVoltage:195VAC~245VAC Frequency: 50Hz Power: 15VA
Size and WeightOuter size(MM): 293(W)X130(H)x447(D) Weight: 5kg
AccessoriesATL503DZ2 with clip 1 pair, ATLA503DZ2 without clip 30 pairs ATL108 RS232 interface cable
Others5 inch big screen display, key lock and data keeping function, U disk data recording.
APPLICATIONS
    All kinds of contact resistance measurement
    Li-battery, alkaline cell and lead accumulator determination of degradation and evaluation of lifetime
    UPS test online and lead accumulator factory inspection
    ESR test of super capacitor
