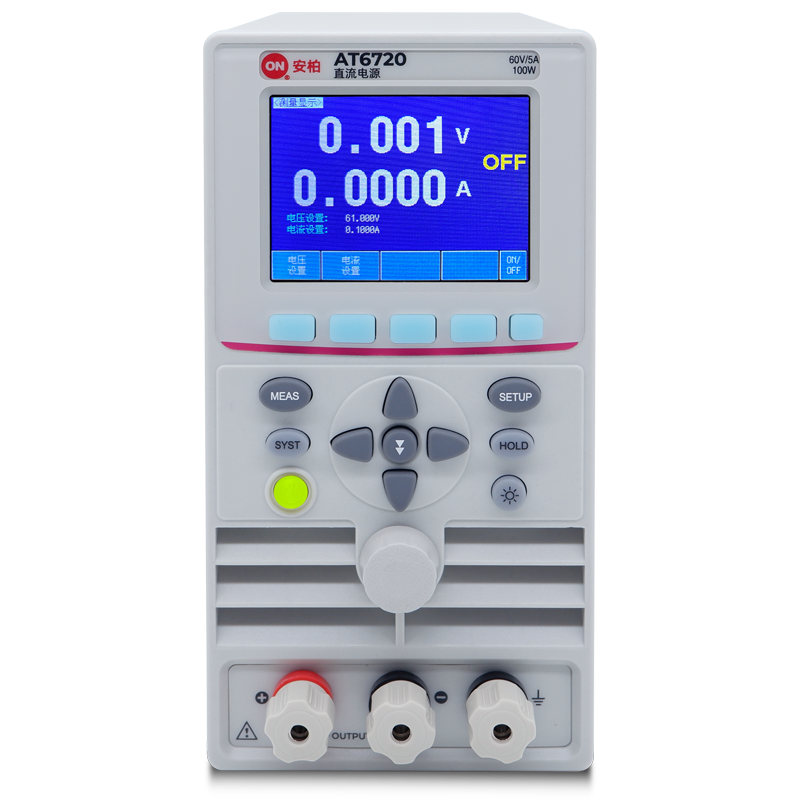

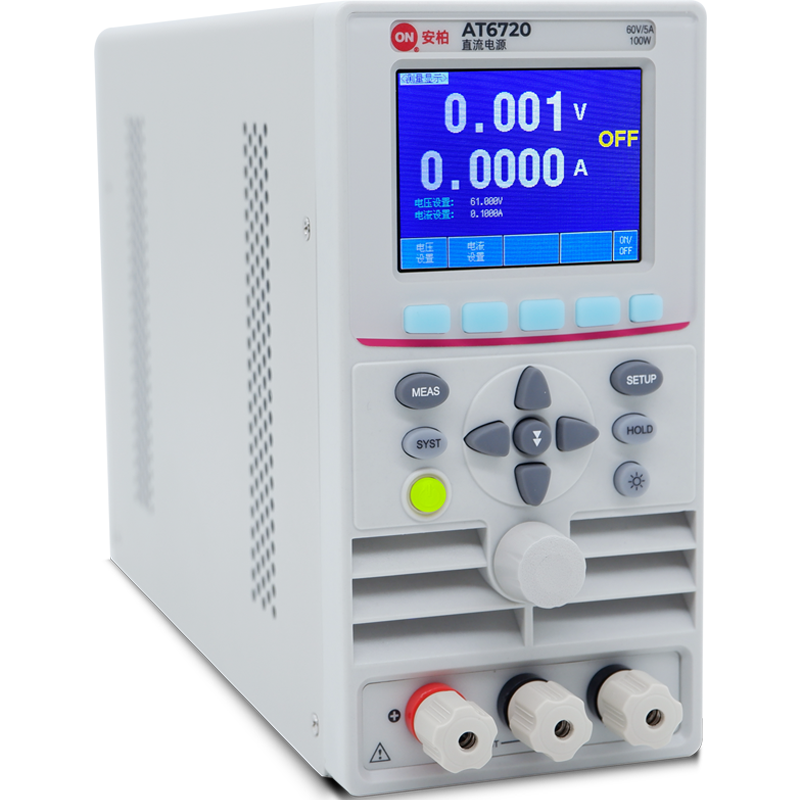

AT6720 DC POWER
ACTIVE
Send Email to us
RS232RS485USB-232
OVERVIEW
    AT6720 DC power supply adopts high-performance microprocessor control, LCD display, small size, light weight and simple operation interface. You can use the communication interface of AT6720 to edit test settings to complete efficient testing.The instrument can realize data acquisition, analysis and printing through computer software. AT6720 adopts a wide range design, one can replace the three models of 60V*1.6A, 32V*3A, 20V*5A, which can reduce repeated purchases and greatly improve the convenience of use.It adopts the design of front-stage switching power supply and post-stage linear adjustment, and the performance is better.
FEATURES
  • Low noise and ripple
  • True color LCD screen
  • Five protections OVP /OCP /OHP /RVP/ACP
  • 1mV/0.1mA high resolution and wide range design,
  • One can replace 3 instruments
  • CC and CV mode automatically select
  • RS232/485 communication port
  • Type-C interface
  • 110V/220V power supply automatic judgment
SPECIFICATIONS
Channel\
Output Voltage Range○
Voltage0~60V
Electric current0~5A
Power100W
Load regulation rate○
Voltage<0.01%+3mV
Current<0.01%+3mA
Power regulation rate○
Voltage<0.01%+3mV
Current<0.01%+3mA
Set value resolution○
Voltage1mV
Current0.1mA
Read back value resolution○
Voltage±0.05%，±6dgt
Current±0.1%，±10dgt
Set value accuracy○
Voltage\
Current\
Read back value accuracy○
Voltage\
Current\
Ripple○
Voltage<5mV rms
Current<5mA rms
Empty load○
Empty load\
Full load\
Descent time○
Empty load\
Full load\
Programming languageSCPI& Modbus (RTU)
InterfaceRS232 /RS485 /USB (‌Instrument Type-C port to PC USB port)
Other\
AccessoriesATL509 Test Lead; Power Cord
Other AccessoriesATL108 RS-232C Communication Cable；
Size88 (w)x174(H)x279 (L)
Weight2kg
APPLICATIONS
    Laboratory
    Aging Test
    School Education
    Production Line
    Detection Battery Test
    Mobile Phone Repair
    Automated Production Line
DOCUMENTATION
DOCUMENTS
DATASHEET ENGLISH

|

CHINESE
USER'S GUIDE CHINESE
ACCESSORIES
STANDARDS

ATL509

ATL509

两端测试夹

OPTIONS

ATL108

ATL108

RS232通讯电缆

SOFTWARE
NONE
