AT2511 Low Ohm Meter
ACTIVE
Send Email to us
OVERVIEW
    AT2511 is an economical typeDC low resistance tester, which is an upgraded version of AT511A.

    Compared with AT511A, AT2511 has a wider test range: 0.01mΩ～200.0kΩ, and the maximum reading 5000数. At the same time, the test speed is improved: the fastest can reach 10 times per second and the reading is stable. The improved automatic range test circuit and the fully electronic switch design can instantly switch from the highest range to the lowest range.

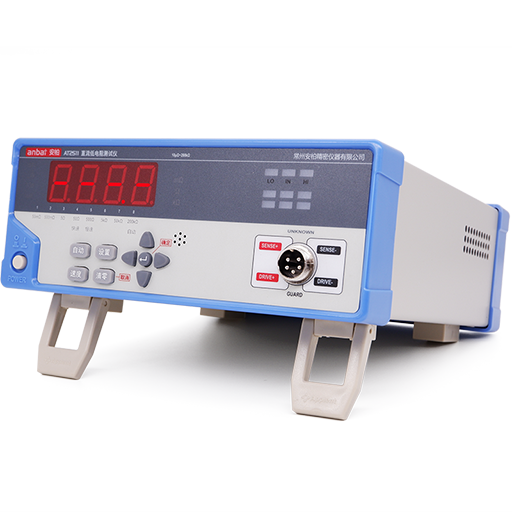

    AT2511 uses 0.8-inch high-brightness digital tube display, all Chinese keys and indicators, so that the instrument display is clearer, and the fool-like operation interface is also easy to use.

    AT2511 uses superior low-current test characteristics, and is especially suitable for resistances that are sensitive to test current, such as platinum thermal resistance, copper thermal resistance, PTC ceramic thermal resistance, alloy wire DC resistance, DC resistance of current protection devices, etc.

    AT2511 is also suitable for measuring various contact resistances; winding resistance of transformers, inductors, motors, deflection coils; wire resistance; metal riveting resistance of vehicles, ships, and airplanes; printed plate lines and hole resistance, etc.
FEATURES
  • 0.8 inches big font, highlight LED display
  • Automatic test and provide manual range function
  • Comparator function
  • Short-circuit Zero-Adjust for each range
  • Accuracy: 0.2%
  • Max Reading: 5000
  • Automatic and manual with 8 ranges
  • Measurement range: 01mΩ～200.0kΩ
  • Fast:10 times/second, Slow:3 times/second
SPECIFICATIONS
ParameterDC RESISTANCE
Accuracy0.2%
Measurement Range10μΩ～200kΩ
Measurement currentI-Max: <100mA (micro current test, compatible with Hioki 3540)
Range8 ranges, auto & manual
SpeedSlow: 3 times/s, Fast: 10 times/s
Displayshow
Display Max5000
Adjustmentshort-circuit reset full range
ComparatorOFF/PASS/HI/LO
TriggerInternal
Method4 terminal shielding (2 check terminal and 2 driving terminal) and external shielding ground section
Power SupplyV: 198VAC～252VAC Fre：48.5-52.5Hz Power：15VA
Dimension & Weight220mm×85mm×259mm / 2kg
AccessoriesATL503 Kelvin test clip
Other Functions0.8 inch LED dispaly
APPLICATIONS
    Measure string cable diameter coil resistance (such as earphone coil)
    Measure sensors resistance
    Measure protectors resistance
    Measure resistance of transformer, inductor, motor, deflection coil winding
    Measure all kinds of contact resistance、welding contact resistance and metal defect detection
    .
