AT9220B Hipot Tester
ACTIVE
Send Email to us
RS232USB-232HANDLER
SCPIMODBUS
DATA LOGGERUSB-DISK
OVERVIEW

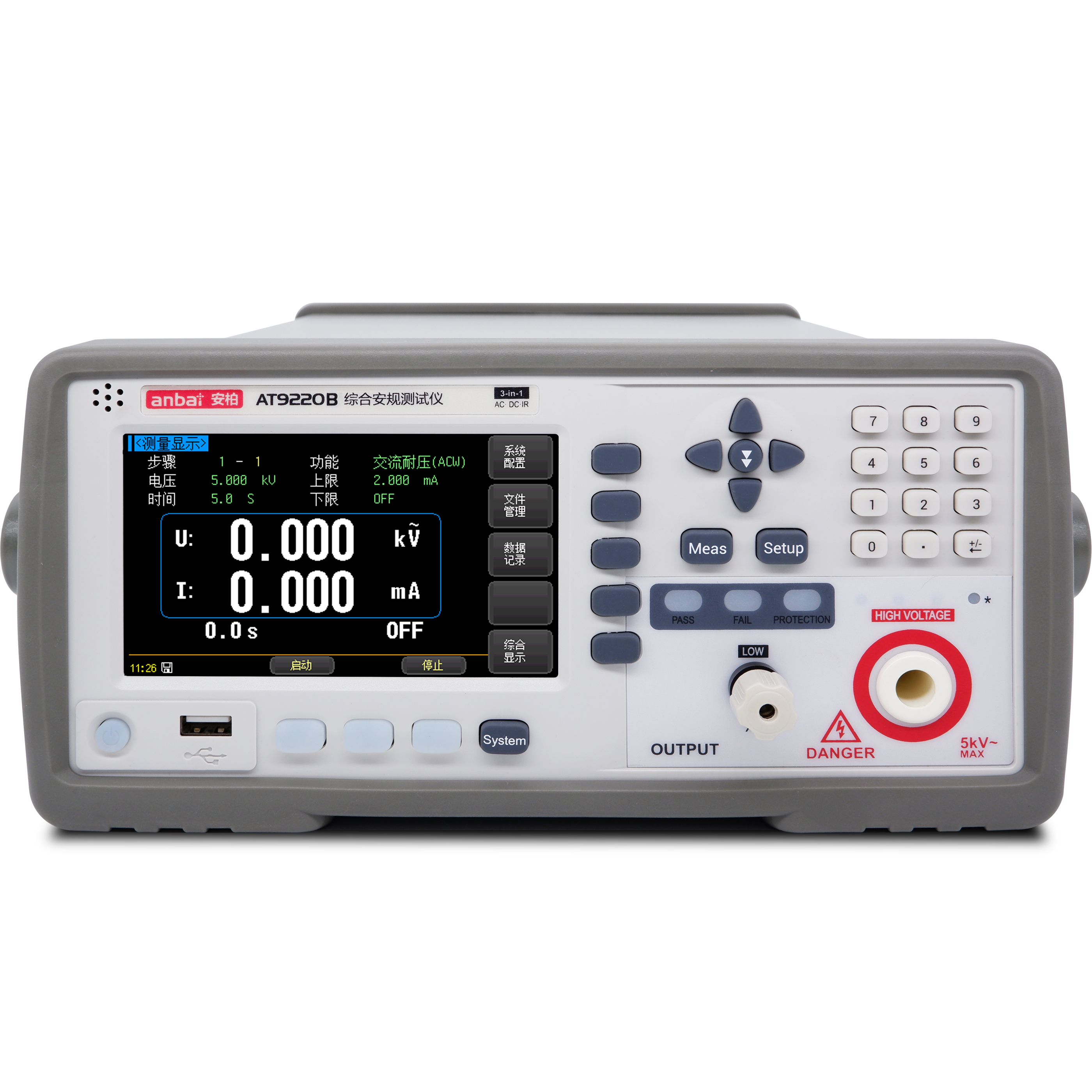

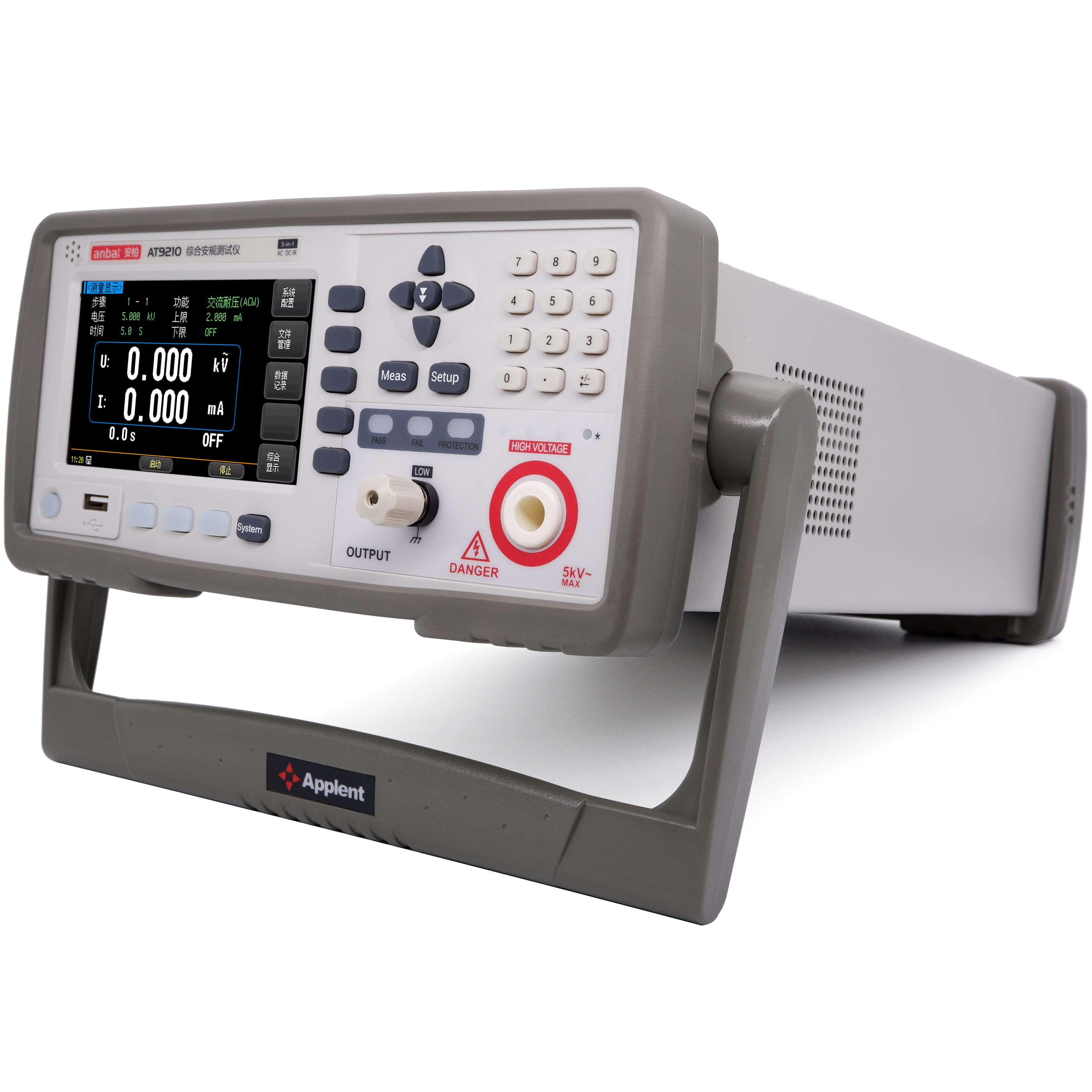

    AT9220B AC/DC hipot tester adopts 5 inches TFT true color LCD and with high performance 32 bits processor. It is small sizes, light weight 8kg ,uper cost-effective, easy to operate.
FEATURES
  • AT9220B can provide 5kVAC/20mA withstand voltage test.
  • Controllable sine generator: It can be set to work at 50 or 60Hz when AC output, no longer limited by line voltage;
  • Linear power amplifier: the distortion of the voltage waveform is small, the control is simple and the reliability is high.
  • 40～600Hz high voltage transformer boost
  • Output voltage closed loop control
  • Independently carry out the AC withstand voltage test or pass the project setting of the test plan, and carry out the multi-project sequential test.
SPECIFICATIONS
Measurement FunctionsAC Withstanding Voltage

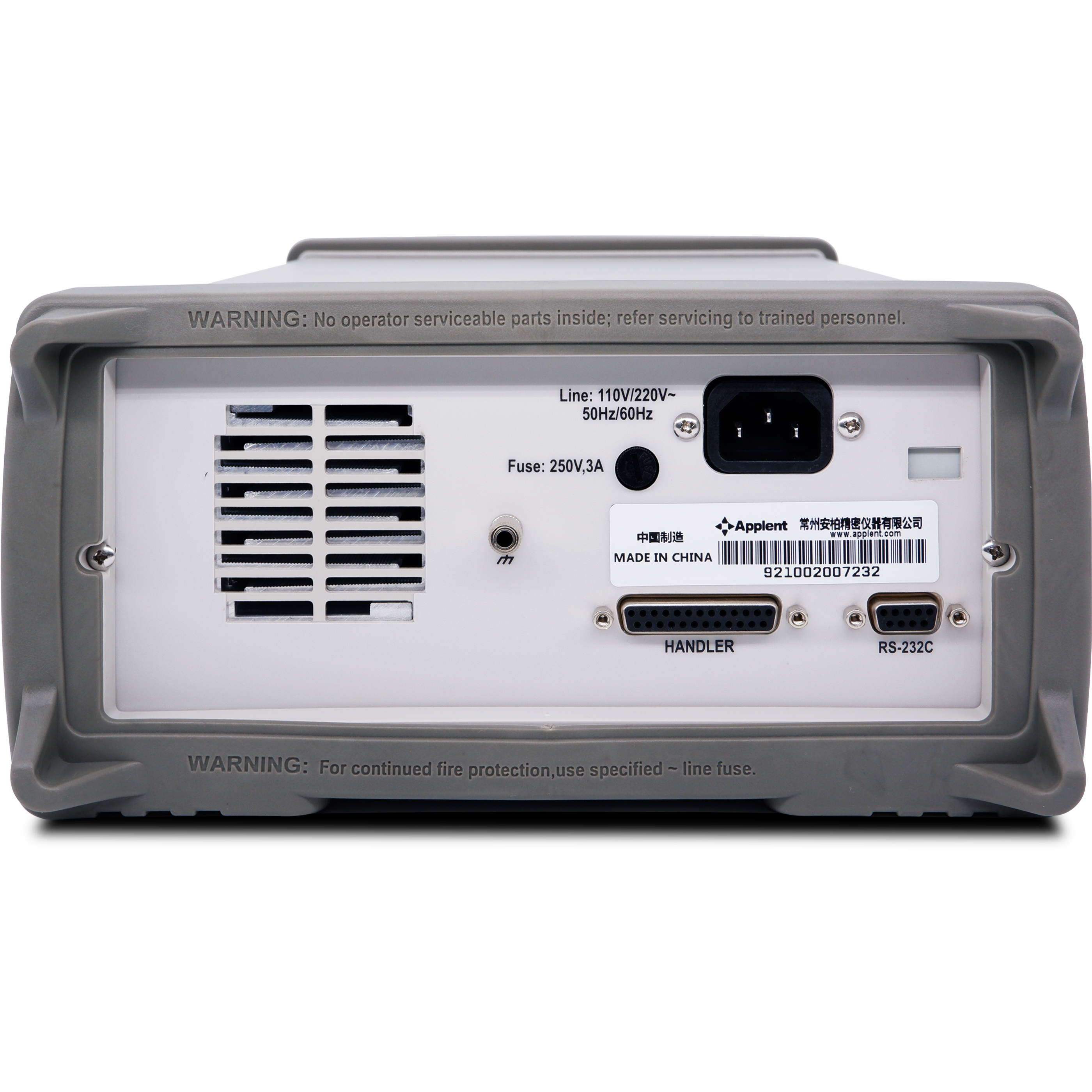

InterfaceRS232/Handler/USB
Standard Configuration5kV/20mA
Arc Detection9 Levels (AC/DC)
Other FunctionsLIST Edit
Discharge Function
5“ LCD + Touch panel
AC Withstand Voltage●
    Rate OuputAC 5.000kV/20mA
    Output Voltage0.050kV-5.000KV AC
Resolution: 1V
    Voltage Accuracy2% of reading + 5 digits
    Output Regulation2% of reading +5V
    Output Frequency50Hz/60Hz
    Measurement Current0.001mA-20.00mA
Resolution: 0.001 / 0.01
    Current Accuracy2% of reading + 5 digits
    Rising Time0.1s-999.9s
    Testing Time0.1s-999.9s
    Falling Time0.1s-999.9s
Power Supply110VAC~220VAC, 50Hz~60Hz 300VA
Dimension & Weight250mm( W )x120mm( H )x320mm ( D )
8kg
AccessoriesATL900E-1 High voltage test rod （Optional Accessories）
ATL900E Withstand voltage test line
ATL108 RS232 Communication
APPLICATIONS
    AT9220B AC withstand voltage tester can be widely used in the safety performance inspection of household appliances, transformers, electrical equipment, and components. The instrument is equipped with Handler interface (PLC interface), RS232C, USB can easily carry out data communication and remote control with PC, to meet automated testing and improve production efficiency.
DOCUMENTATION
DOCUMENTS
DATASHEET ENGLISH

|

CHINESE
USER'S GUIDE CHINESE
ACCESSORIES
STANDARDS

ATL108

ATL108

RS232通讯电缆

ATL900E

ATL900E

高压测试线

OPTIONS

ATL900E1

ATL900E1

高压表棒

SOFTWARE
Applent Communication Assist
Rev.4.23

CHINESE

Application

FREEWARE

2.4MB

RAR
AT92 Series Hipot Tester
Rev.A1.0

Application

FREEWARE

3.7MB

MSI
