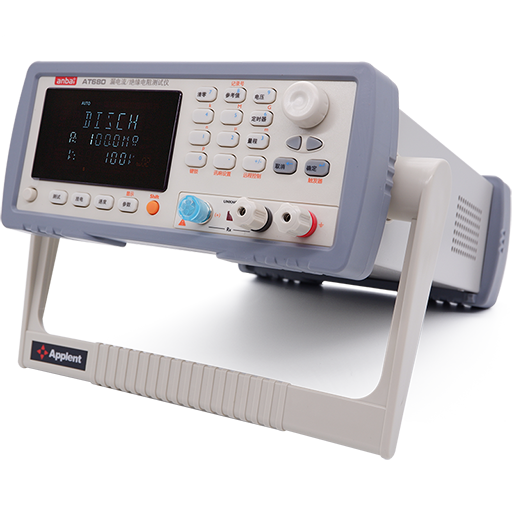

AT680 Leakage Current Meter
ACTIVE
OVERVIEW
    The AT680 Leakage Current/IR Meter provides DC 1~ 650 V voltage source. Mainly used for electrolytic capacitor leakage current testing, and aluminum-foil withstand voltage testing. And also can be used for active voltage checking or leakage current testing of absorber, Zener diode, and Neon lamp etc. RS232C interface and Handler interface, optional USB interface, high speed (55/second) and stable measurement capabilities enable the AT680 can be used for both component evaluation on the production line and fundamental leakage current testing for benchtop applications.
FEATURES

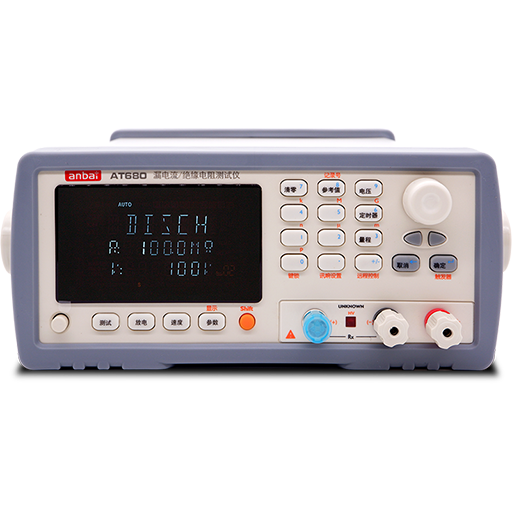

  • High brightness, ultra-clear four-color VFD display, multiple parameters are displayed at the same time.
  • The charging test is automatically switched.
  • Peak hold function.
  • Full range open circuit clear function.
  • Comparator output: the sorting result can be output through RS232C or Handler interface.
  • Beep: beep switch.
  • Adjustable beep and display: Users can set the GD/NG beep and trigger mode according to their needs: internal trigger, manual trigger, external trigger and remote trigger.
  • Adjust the display brightness.
  • Optional foot switch.
SPECIFICATIONS
ParametersLeakage current & Insulation Resistance
Accuracy1%
Output VoltageDigital controll 1V~650VDC
Measurement RangeCurrent：1nA~20mA Resistance：1kΩ~325GΩ
Max Reading9999
RangeAuto & Manual
Charging CurrentAuto & Manual
Speed55 times/s, 15 times/s, 3 times/s,
Result Displayshow, current, resistance,Peak and sorting results
Charging Timer999.9s
Comparator30 sets records , OK/NG
BeepOK, NG, set for volume & off

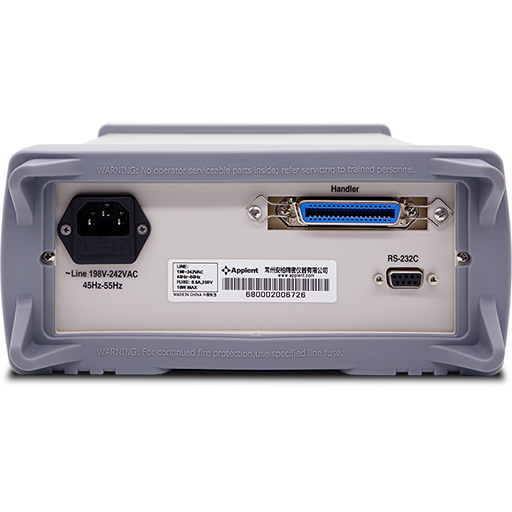

InterfaceRS-232, Handler interface
Dimension & Weight264 x107x350 mm
APPLICATIONS
    Production of electrolytic capacitors.
    Capacitor inspection.
    Insulation resistance test of electronic components and equipment.
    Transistor leakage current detection.
    Dielectric materials and insulation resistance testing of wires and cables, etc.
