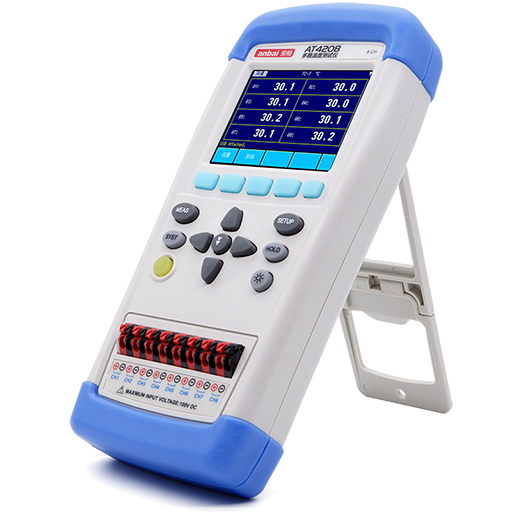

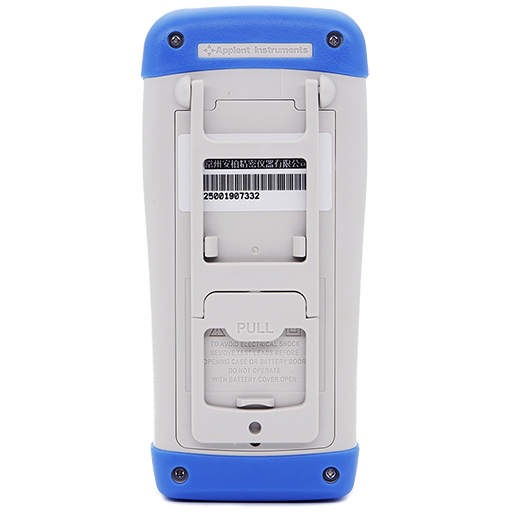

AT4208 Handheld Multi-channel Temperature Meter
ACTIVE
USB-HID
SCPI
DATA LOGGERUSB-DISK
OVERVIEW
    AT4208 handheld multi-channel temperature meter adopts high-performance ARM micro processor, can collect multi-channel temperature data simultaneously and response quickly. AT4208 has the function of checking broken thermocouple, high/low beep function and communication transmission. Ultra-low power consumption and high density SMD assembly technology. True-color TFT liquid crystal display, keypad and touch screen double control. It is Li- battery powered. USB communication. Switch in both English and Chinese.

    The standard computer software can realize the data analysis.
FEATURES
  • TFT-LCD True-color LCD display
  • touch screen
  • Fast,Medium,Low scanning speed
  • Cold Junction Compensation
  • Mini-USB interface
  • The function of broken thermocouple checking
  • ATS42 data acquisition software
  • 8.4V, Li battery powered
SPECIFICATIONS
GraduationThermocouple:J/K/T/E/S/N/B/R
Accuracy0.2%+1℃
Range-200℃~1800℃ (variation depend on graduation)
Resolution0.1℃
Channels8 channels
Speed1s/ channel
CorrectionError correction for each channel
Comparatorhigh & low beep function
InterfaceMini-USB
SoftwareATS42 data acquisition software
Cold JunctionAccuracy: 0.5℃
Other Functions2.8 inch color 16M TFT-LCD display, touch screen, USB communication, compatible SCPI order set, Chinese/Englsih Language, adjustable back light, auto power off
Power SupplyInput:100-240V~50/60Hz 0.35A output:9V 1A DC
Dimension & Weight90x190x31mm weight:400g
AccessoriesK thermocouple 2 channels (2 meters/ channel) ATL909 DC adaptor, ATL805 Li battery, USB communication cable, ATS42 data acquisition software
APPLICATIONS
    Apply to home appliance,motors,heating appliance,temperature controller,transformer,oven,thermal protector,power supply,lighting,electric power,LED and so on.
