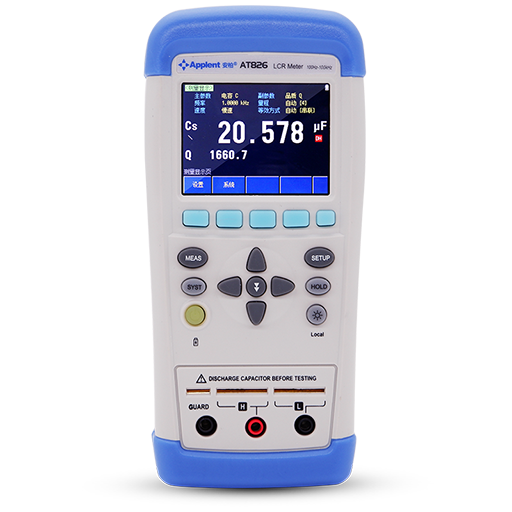

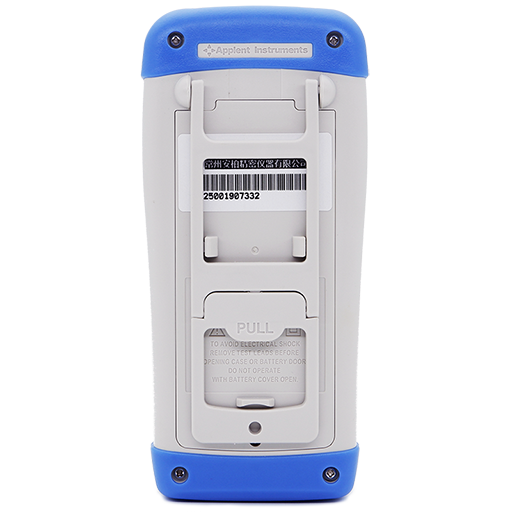

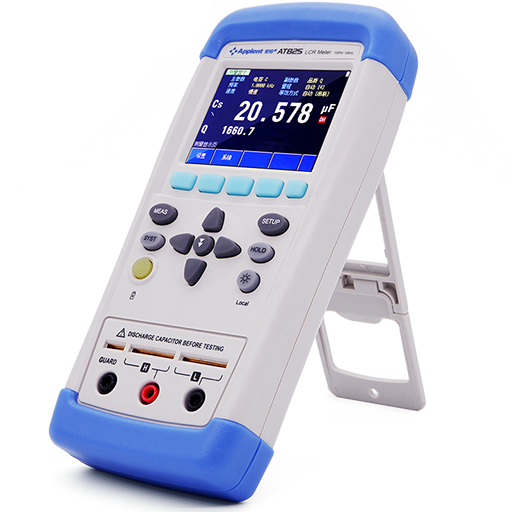

AT826 Handheld LCR Digital Meter
ACTIVE
100Hz, 120Hz, 1kHz, 10kHz, 100kHz
Touch Panel and Li-Battery
USB-HID
SCPI
OVERVIEW
    AT826 series handheld LCR Digital electric bridge adopts high performance 32-bit ARM microprocessor. True-color TFT liquid crystal display, keypad and touch screen double control. Using Li- battery supply power. USB communication. Switch in both English and Chinese. AT826, 825 handheld LCR digital meter have the highest configuration.

    With the highest frequency of 100Khz, constant 100Ω source internal resistance, 0.6Vrms measurement voltage level, and 0.2% accuracy, make AT826, 825 have the excellent performance of both desktop instrument and portability of handheld.
FEATURES
  • High brightness, true color LCD display
  • touch screen
  • Chinese and English switching
  • USB-HID communication
  • Correction function: full range open circuit and short circuit sweep frequency clearing.
  • 1300mAh rechargeable lithium battery
  • Long working hours: 14 Hours @30% Brightness
SPECIFICATIONS
Test FunctionsL,C,R,Z
Accuracy0.2%
Measurement Frequency100Hz, 120Hz, 1kHz, 10kHz, 100kHz
Measurement Speed4 times/s, 1.5 times/s
Display RangeL: 0.01uH-9999H
C: 0.01pF - 9999uF
R,Z: 0.0001Ω - 99.99MΩ
D:0.0001–9.999
Q:0.0001~999.9
Source Resistance100Ω
Display Reader49999
Signal Level0.6Vrms, ±10% accuracy
Trigger ModeInternal
Comparator1 sets, compare main parameters
Comparator ModeSEQ/ABS/PER
Adjustmentopen/short clear zero
FilesUSB storage
InterfaceUSB-HID
ProtocolSCPI
Other FunctionsTouch screen; USB-HID communication, compatible SCPI ; English & Chinese language, adjustable back light, auto power off(APO)
Power Supplyinput: 100-240V,50Hz, 0.35A, output:9V 1A DC
Dimension & Weight90*195*35.5mm
400g
APPLICATIONS
    Componets and materials measurement such as Inductor, Magnetic core, Ferrite core, Capacitor, Transformer and etc.
DOCUMENTATION
DOCUMENTS
DATASHEET ENGLISH

|

CHINESE
USER'S GUIDE ENGLISH

|

CHINESE
ACCESSORIES
STANDARDS

ATL105

ATL105

MiniUSB通讯电缆

ATL501C

ATL501C

四端开尔文夹

ATL600

ATL600

ATL805

ATL805

锂电池

ATL909

ATL909

直流电源适配器

ATL909

ATL909

直流电源适配器

ATUSB

ATUSB

OPTIONS
NONE
SOFTWARE
.NET Framework 4.5
Rev.4.5

Prerequisites

SYSTEM

48.0MB

EXE

AT825/826 Data Acquisition Software
Rev.A1.0

ENGLISH

Application

FREEWARE

9.2MB

RAR
