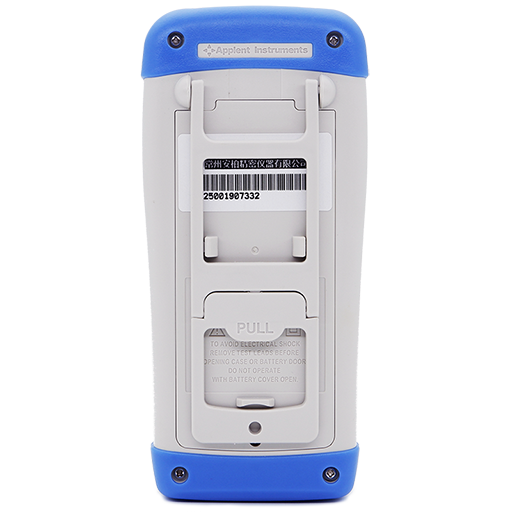

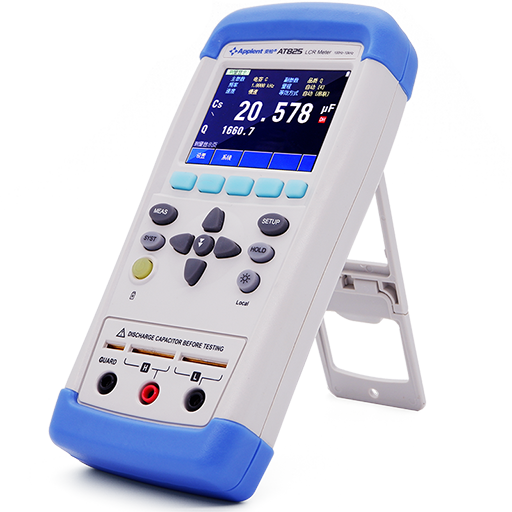

AT825 Precision LCR Meter
ACTIVE
100Hz, 120Hz, 1kHz, 10kHz
Touch Panel and Li-Battery
USB-HID
SCPI
OVERVIEW
    AT825 Handheld Digital LCR Meter with high performance 32-bit ARM microprocessor.

    TFT true color LCD display. Keypad and touch screen double control.

    Adopt Li- battery supply power, USB communication.

    Switch in both English & Chinese.

    The highest frequency of 10kHz. constant 100Ω source internal resistance, 0.6Vrms measurement voltage level, and 0.2% accuracy.
FEATURES
  • High brightness, true color LCD display
  • touch screen
  • Chinese and English switching
  • USB-HID communication
  • Correction function: full range open circuit and short circuit sweep frequency clearing.
  • 1300mAh rechargeable lithium battery
  • Long working hours: 14 Hours @30% Brightness
SPECIFICATIONS
Test FunctionsL,C,R,Z
Accuracy0.2%
Measurement Frequency100Hz, 120Hz, 1kHz，10kHz
Measurement Speed4 times/s, 1.5 times/s
Display RangeL: 0.01uH-9999H
C: 0.01pF - 9999uF
R,Z: 0.0001Ω - 99.99MΩ
D:0.0001–9.999
Q:0.0001~999.9
Source Resistance100Ω
Display Reader49999
Signal Level0.6Vrms, ±10% accuracy
Trigger ModeInternal
Comparator1 sets, compare main parameters
Comparator ModeSEQ/ABS/PER
Adjustmentopen/short clear zero
FilesUSB storage
InterfaceUSB-HID
ProtocolSCPI
Other FunctionsTouch screen; USB-HID communication, compatible SCPI ; English & Chinese language, adjustable back light, auto power off(APO)
Power Supplyinput: 100-240V，50Hz, 0.35A, output:9V 1A DC
Dimension & Weight90*195*35.5mm
400g
APPLICATIONS
    Componets and materials measurement such as Inductor, Magnetic core, Ferrite core, Capacitor, Transformer and etc.
