AT810 LCR Meter
OBSOLETE
RECOMMENDED: AT3810A
RS232HANDLER
SCPI
OVERVIEW
    The AT810 LCR Meter features both high performance, high speed measurements with a low prices.

    The basic accuracy of 0.1% makes the AT810 suitable for use on production lines and laboratories.

    The built-in high speed comparator significantly reduces production line tact time and allows the construction of automatic production lines.

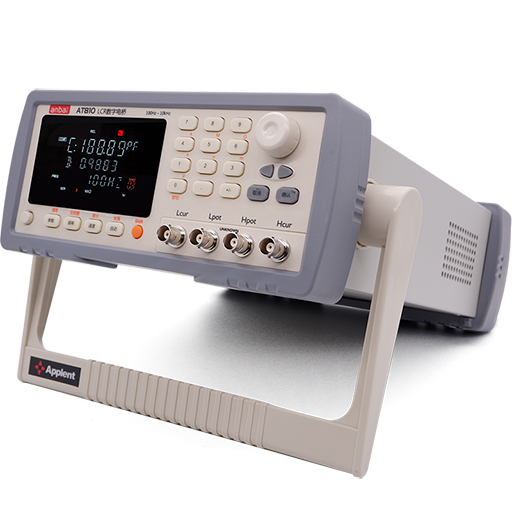

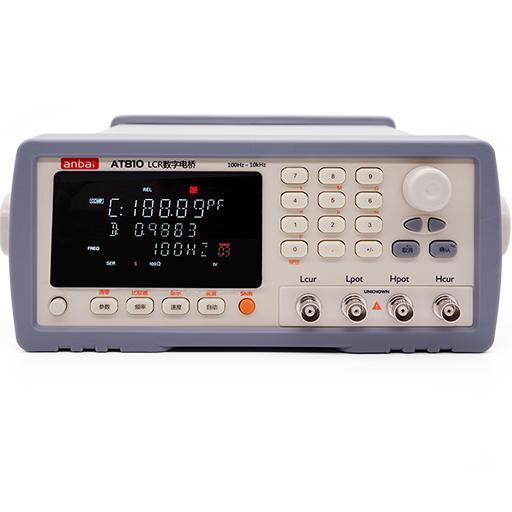

    The very compact body features a clearly visible VFD display that facilitates easy operation and allows settings to be confirmed at a glance.
FEATURES
  • VFD Display
  • Correction: OPEN and SHORT
  • View: ΔABS, Δ% or Sorting Result on 3rd Line
  • Comparator Function: 20 files, P1,P2,P3,NG,AUX, HI, IN, LO

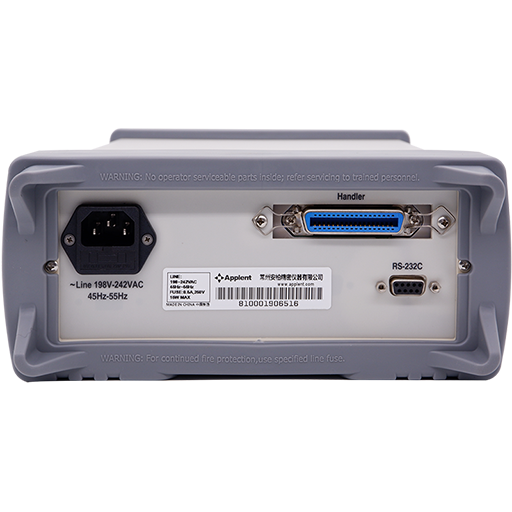

  • Interface: RS232C and Handler
  • Key lock function
  • Data Hold function
SPECIFICATIONS
Test FunctionsL,C.R,Z,D,Q
Accuracy0.1%
Measurement Frequency100Hz, 120Hz, 1kHz, 10kHz
Measurement RangeAUTO/HOLD, 6 Ranges
Measurement Speed15 times/s, 5 times/s, 3 times/s
Display RangeL: 0.01μH-9999H
C: 0.01pF – 9999μF
R,X,Z: 0.0001Ω - 99.99MΩ
D, 0.0001 – 9.9999
Q: 0.0001 – 9999.9
Source Resistance30Ω/100Ω
Monitor ParameterZ, D, Q, θ, ΔABS, Δ%
Display Reader5 digits: 99999
Equivalent CircuitSerial and Parallel
Signal Level10.00mV~2.00V AC
100.0μA~20.00mA AC
Trigger ModeINT/HOLD/MAN/BUS
ComparatorP1/P2/P3/AUX/NG
Comparator ModeSEQ/ABS/PER
AdjustmentOPEN/SHORT Zeroing
Beep FeatureOFF/P1/P2/P3/AUX/OUT
InterfaceRS232/Handler
ProtocolSCPI
Power SupplyAC 198V-240V, 50Hz-60Hz
15W MAX
Dimension & Weight264(W)x107(H)x350(L)
4kg, net
APPLICATIONS
    Componets and materials measurement such as Inductor, Magnetic core, Ferrite core, Capacitor, Transformer and etc.
