AT9210A Hipot Tester
ACTIVE
0.050kV-5.000KV
0.001mA-10.00mA
RS232
LANOPTIONS
SCPIMODBUS
DATA LOGGERUSB-DISK
OVERVIEW

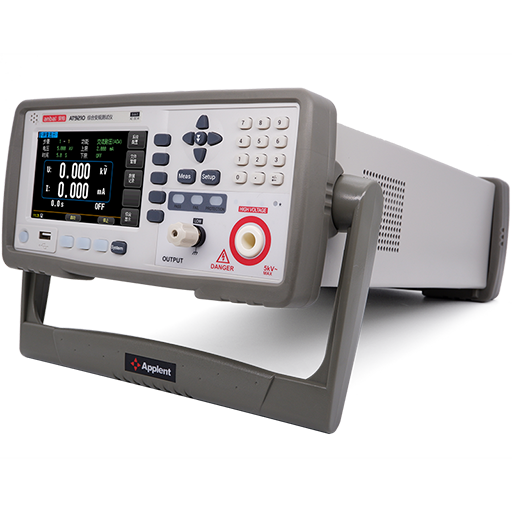

    AT9210 AC/DC hipot tester adopts 5 inches TFT true color LCD display ( touch screen) and with high performance 32 bits processor. It is small sizes, light weight 8kg ,super cost-effective, easy to operate. The high-voltage module of the instrument uses a DA as base, a controllable sine generator, a class AB power amplifier, a 40-600Hz high-voltage transformer for boosting, and the output voltage is closed-loop controlled.

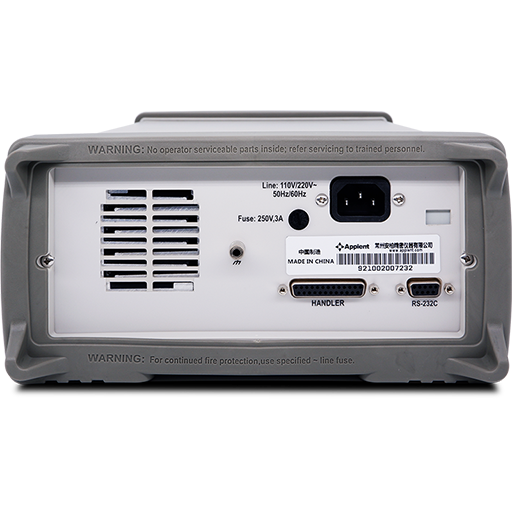

    AT9210 series equiped with Handler (PLC), The RS232C interface can easily carry out data communication and remote control with the PC, which can meet the requirements of automated testing and improve production efficiency.
FEATURES
  • AT9210A can provide 5kVAC/10mA withstand voltage, 6kVDC/5mA withstand voltage test.
  • Controllable sine generator: It can be set to work at 50 or 60Hz when AC output, no longer limited by line voltage;
  • Linear power amplifier: the distortion of the voltage waveform is small, the control is simple and the reliability is high.
  • Output voltage closed loop control
  • Single-machine AC withstand voltage test, DC withstand voltage test, and project settings that can pass the test plan, perform multi-item sequential testing.
SPECIFICATIONS
Measurement FunctionsAC/DC Withstanding Voltage
InterfaceRS232/Handler
Arc Detection9 Levels (AC/DC)
Other FunctionsLIST Edit
Discharge Function
5“ LCD + Touch panel
AC Withstand Voltage
    Rate OuputAC 5.000kV/10mA
    Output Voltage0.050kV-5.000KV AC
Resolution: 1V
    Voltage Accuracy2% of reading + 5 digits
    Output Regulation2% of reading +5V
    Output Frequency50Hz/60Hz
    Measurement Current0.001mA-10.00mA
Resolution: 0.001 / 0.01
    Current Accuracy2% of reading + 5 digits
    Rising Time0.1s-999.9s
    Testing Time0.2s-999.9s
    Falling Time0.1s-999.9s
DC Withstand Voltage
    Rate OutputDC 6kV/5mA
    Output Voltage0.050kV-6.000kV DC
Resolution: 1V
    Voltage Accuracy2% of reading + 5 digits
    Output Regulation2% of reading +5V
    Current Measurement0.1μA-5.000mA
    Current Accuracy2% of reading +5 digits
    Rising Time0.1s-999.9s
    Testing Time0.2s-999.9s
    Falling Time0.1s-999.9s
Power Supply198V ~ 242V AC, 50/60Hz
400VA
Dimension & Weight270mm( W )x130mm( H )x450mm ( D )
10kg
AccessoriesATL900E-1 High voltage test rod
ATL900E Withstand voltage test line
ATL108 RS232 Communication
APPLICATIONS
    Safety performance inspection of household appliances, transformers, electrical equipment, and components.
