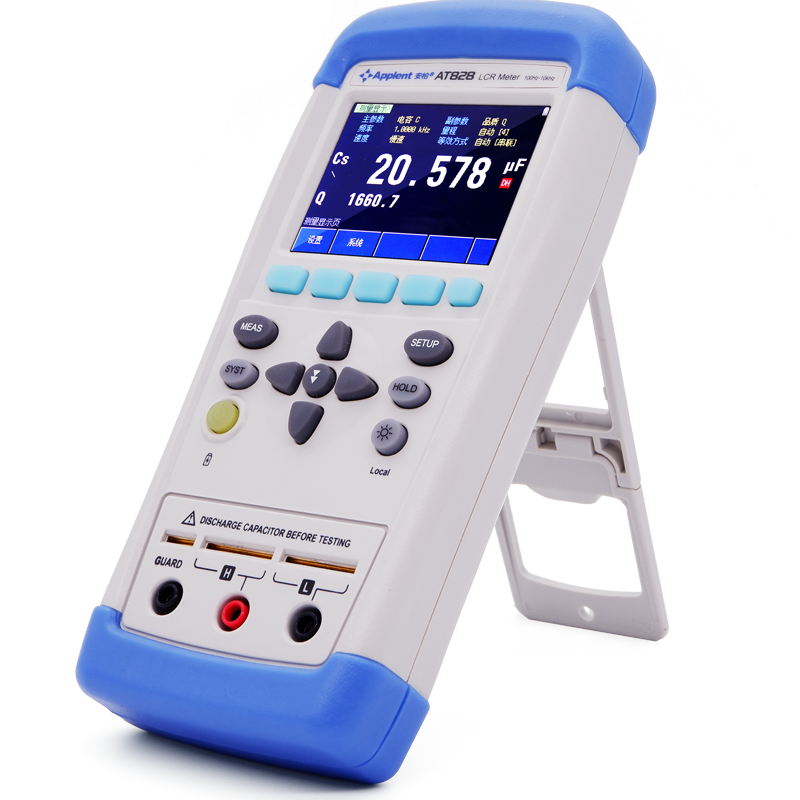

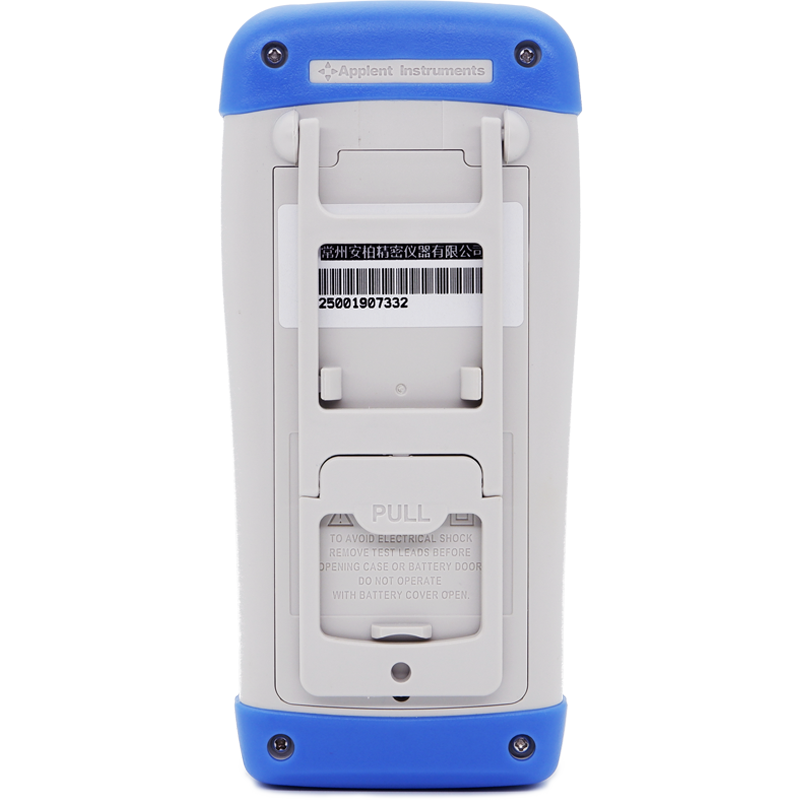

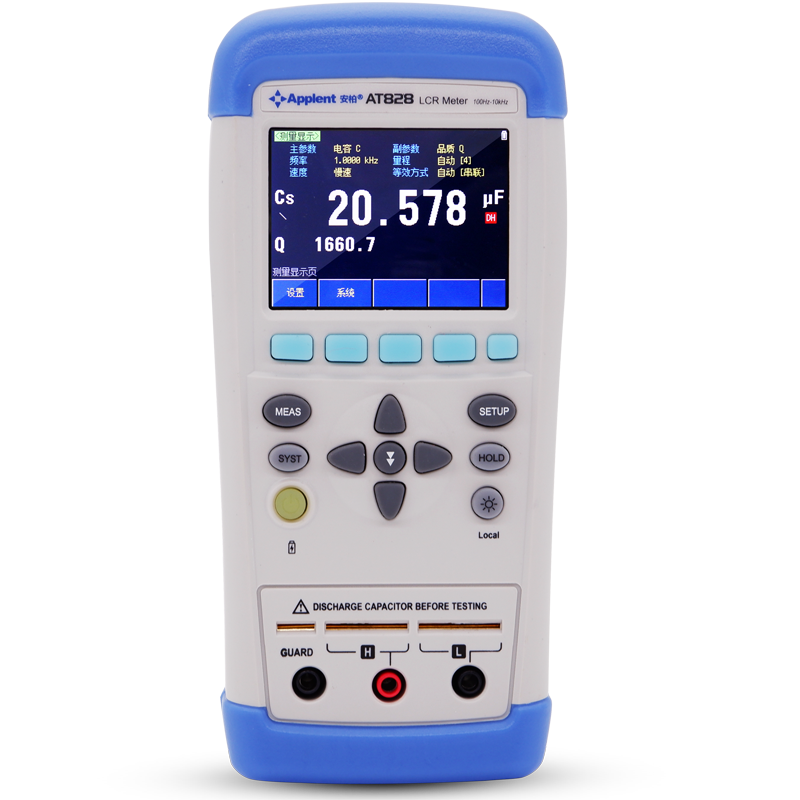

AT828 Handheld LCR Digital Meter
ACTIVE
USB-HIDUSB-232
SCPI
DATA LOGGERUSB-DISK
OVERVIEW
    FEATURES
    SPECIFICATIONS
    Test FunctionsC-D, C-Q, C-R, L-D, L-Q, L-R, L-Rdc, R-Q, R-X, R-Rdc, Rdc, Z-D, Z-Q, Z-θr, Z-θd
    Accuracy0.2%
    Measurement Frequency50Hz, 100Hz,120Hz,1kHz,2kHz,10kHz
    Display RangeL: 0.01uH-9999H
    C: 0.01pF - 9999uF
    R,Z: 0.0001Ω - 99.99MΩ
    D:0.0001–9.999
    Q:0.0001~999.9
    Source Resistance100Ω
    Trigger ModeInternal
    Comparator1 sets, compare main parameters
    Comparator ModeSEQ/ABS/PER
    Adjustmentopen/short clear zero
    FilesUSB storage
    InterfaceUSB-HID
    ProtocolSCPI
    Other FunctionsTouch screen; USB-HID communication, compatible SCPI ; English & Chinese language, adjustable back light, auto power off(APO)
    Power Supplyinput: 100-240V,50Hz, 0.35A, output:9V 1A DC
    Dimension & Weight90*195*35.5mm
    400g
    DOCUMENTATION
    DOCUMENTS
    DATASHEET CHINESE
    USER'S GUIDE CHINESE
    ACCESSORIES
    STANDARDS

    ATL105

    ATL105

    MiniUSB通讯电缆

    ATL501C

    ATL501C

    四端开尔文夹

    ATL600

    ATL600

    ATL805

    ATL805

    锂电池

    ATL909

    ATL909

    直流电源适配器

    ATL909

    ATL909

    直流电源适配器

    ATUSB

    ATUSB

    OPTIONS
    NONE
    SOFTWARE
    NONE
