AT810D LCR Meter
OBSOLETE
RECOMMENDED: AT3810A
RS232
SCPI
OVERVIEW

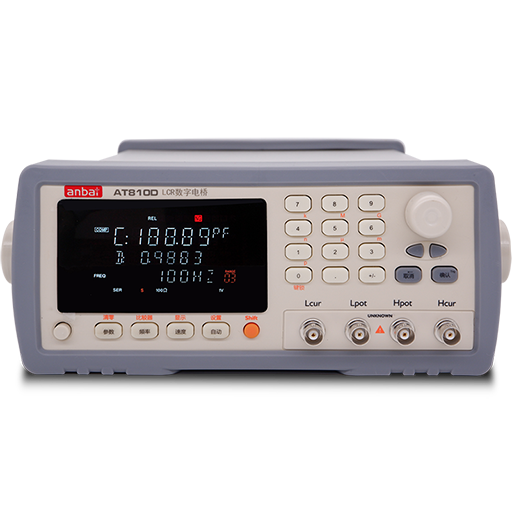

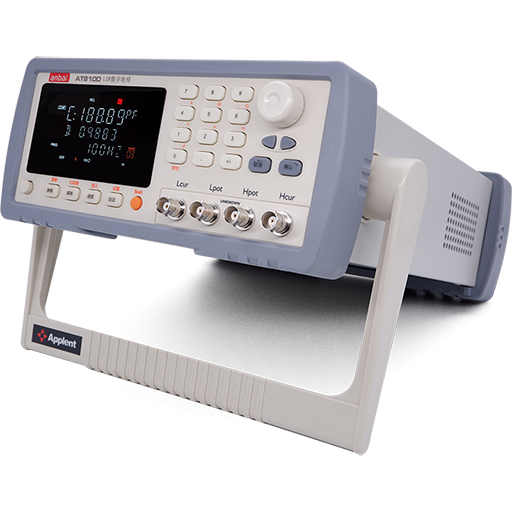

    AT810D adopt high performance processor is an intelligent LCR test instrument with a bright color VFD screen. The use of large-scale patch technology makes AT810D only need a miniature chassis to accommodate it. Relying on the exquisite technology of Anbai Instruments, its performance is impeccable.

    Built-in 100Hz, 120Hz, 1kHz and 10kHz test frequencies, and provide 0.3V and 1V test levels, so that it can fully meet the use of general production sites.

    Using Anbai Technology AT-OS 2005 micro-instrument operating system, AT810D has a fool-like operation interface.
FEATURES
  • High brightness, ultra-clear four-color VFD display.
  • Correction function: full range open circuit and short circuit sweep frequency clearing.
  • The third window can display Z, D, Q, ΔABS, Δ% or sorting results at the same time.
SPECIFICATIONS
Test FunctionsCs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,R-X,Z-θrad,Z-θdeg
Accuracy0.2%
Measurement Frequency100Hz, 120Hz, 1kHz, 10kHz
Measurement RangeAUTO/HOLD/NOMINAL 6 Ranges
Measurement Speed2 times/s, 5 times/s
Display RangeL: 0.01μH-9999H
C: 0.01pF-9999μF
R,Z:0.0001Ω-99.99MΩ
Δ%: -9999% - 9999%
D: 0.0001 - 9.9999
Q:0.0001 - 9999
R,X,Z: 0.00001Ω - 99.9999MΩ
D, 0.00001 – 9.99999
Q: 0.00001 – 99999.9
Δ%: -999999% - 999999%
θ(deg): -179.999° -179.999°
θ(rad):-3.14159 – 3.14159
DCR: 0.00001Ω ~ 99.9999MΩ
Source Resistance30Ω and 100Ω
Monitor ParameterZ, D, Q, Δ, Δ%
Display Reader5 digits: 99999
Equivalent CircuitSerial and Parallel
Signal Level0.1Vrms, 0.3Vrms 和 1Vrms
Trigger ModeINT/HOLD/MAN/BUS
Comparator5 档分选 P1,P2,P3,AUX,NG
Comparator ModeSEQ/ABS/PER
AdjustmentOPEN/SHORT Zeroing
Beep FeatureOFF/P1/P2/P3/AUX/NG

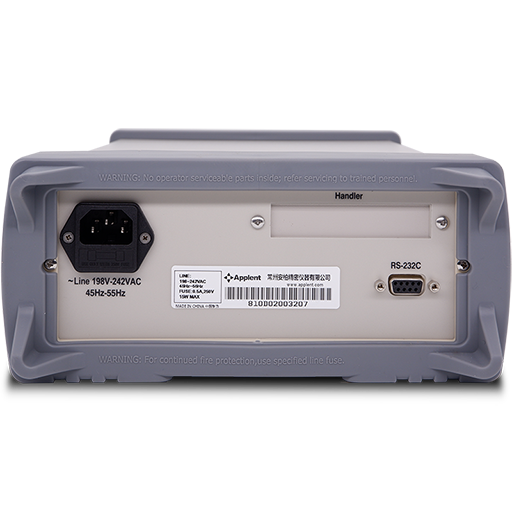

InterfaceRS232/HANDLER
ProtocolSCPI
Power SupplyAC 198V-240V, 50Hz-60Hz
15W MAX
Dimension & Weight264(W)x107(H)x350(L)
4kg, net
APPLICATIONS
    Component Sorting Machine Version.
    Componets and materials measurement such as Inductor, Magnetic core, Ferrite core, Capacitor, Transformer and etc.
