AT5220 AC Low ohm Meter (Battery Internal Resistance Meter)
ACTIVE
RS232HANDLER
GPIBOPTIONS
USB-DISK
OVERVIEW
    AT5220 is a newly designed multi-channel battery tester with high precision and high stability. It can quickly complete the sorting of 20 groups of battery voltage and internal resistance; It is controlled by high-performance ARM microprocessor. True color 3.5 inchLCD display in Chinese and English, more convenient to operate. It is widely used in battery manufacturers to quickly sort contact resistance, battery voltage and battery internal resistance. The new and improved sampling circuit can measure any kind of battery. In addition, the instrument has a professional sorting function, the sorting sound setting, the HANDLER interface (PLC interface) and the RS-232C interface are added, and the SCPI protocol and Modbus protocol are supported (Modbus has become the national standard GB/T19582-2008). The sorting system completes the automatic assembly line test. It can also be equipped with a USB interface for remote control and data acquisition and analysis, which is very suitable for mass production of batteries.
FEATURES
  • Adopt vector method and measure multi parameter silmutaneously
  • Comparator(sorting) function
  • Detection of damage test wire
  • Compatible with SCPI
  • Brand-new improved sampling circuit
SPECIFICATIONS
120 channel AC resistance , 20 channel DC voltage
1Resistance:0.5% Voltage:0.05%
1Resistance:0.01mΩ~3.3000KΩ Voltage:0.00001V~60.000VDC
1AC 1kHz,Test current:<150mA
13 ranges for auto & manual
1Fast: 10 channel/ 1s, Medium: 10 channel/2s, Slow:10 channel/3s
1show,ΔABS,Δ%,θ, sorting result
1Resistance:3,0000 Voltage:60,000
1short-circuit correction full range
1RHI/RNG/RLO output VHI/VNG/VLO Output absolute value tolerance±TOL sorting percentage tolerance TOL sorting Order comparison sorting
1Internal, Manual, External & Remote trigger

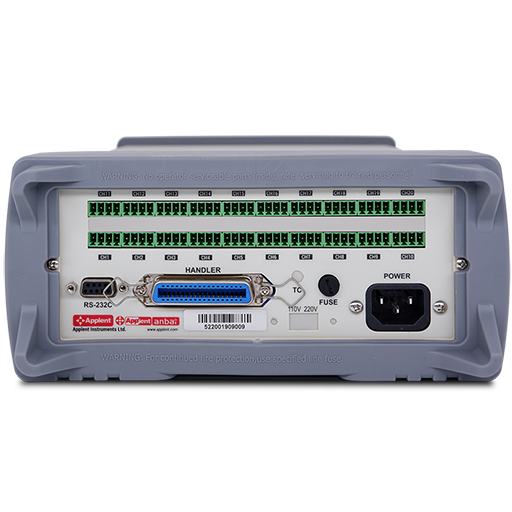

1RS-232C, Handler, (PLC interface)
1Voltage:195VAC~245VAC Frequency:50Hz Power:15VA
1264 x107x350 mm / 4kg
1ATL503DZ2 with clip 1 set、ATL503DZ2 without clip 20 sets, ATL108 RS232 communication cable
1TFT-LCD dispaly, keypad lock ,data hlod function,internal memory and U -disk record
APPLICATIONS
    All kinds of contact resistance measurement
    Li-battery, alkaline cell and lead accumulator determination of degradation and evaluation of lifetime
    UPS test online and lead accumulator factory inspection
    ESR test of super capacitor
